EKI-2706G Series Startup Manual 1

EKI-2706G-2FPI&EKI-2706G-2GPI

Industrial Unmanaged PoE Switch

Startup Manual

Specications

Overview

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the EKI-2706G Series.

Part No. 2049270610

Printed in Taiwan

1st Edition

January 2024

General

• Compatibility: IEEE 802.3, 802.3u, 802.3z, 802.3ab,

802.3x, 802.3at/af

• LAN:

EKI-2706G-2FPI:

-4 x 10/100/1000BASE-T/TX RJ-45 PoE Ports

-2 x SFP (mini-GBIC) 100/1000Mbps port

EKI-2706G-2GPI:

-4 x 10/100/1000BASE-T/TX RJ-45 PoE Ports

-2 x 10/100/1000BASE-T/TX RJ-45 Ports

• Ethernet RJ-45: Up to 100 m

• SFP: Up to 110 Km (depends on SFP)

• Connectors:

- EKI-2706G-2FPI: 4 x RJ-45, 2 x SFP

- EKI-2706G-2GPI: 6 xRJ45

• Switch Architecture: Store and Forward

• Power Input: 12~48VDC, redundantpower

• Power Consumption: Max 4.32W (system)

• Power Budget:

- 120W@24/48VDC

- 70W@12VDC

• Dimensions (W x H x D): 46 x 140 x 130 mm

• Enclosure: IP30

• Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)

• Storage Temperature: -40 ~ 85°C (-40°F ~ 185°F)

• Operating Humidity: 5 ~ 95% (non-condensing)

• Storage Humidity: 5 ~ 95% (non-condensing)

• Safety: LVD EN62368

• EMC: FCC Class A, CE

• Warranty: 5 year

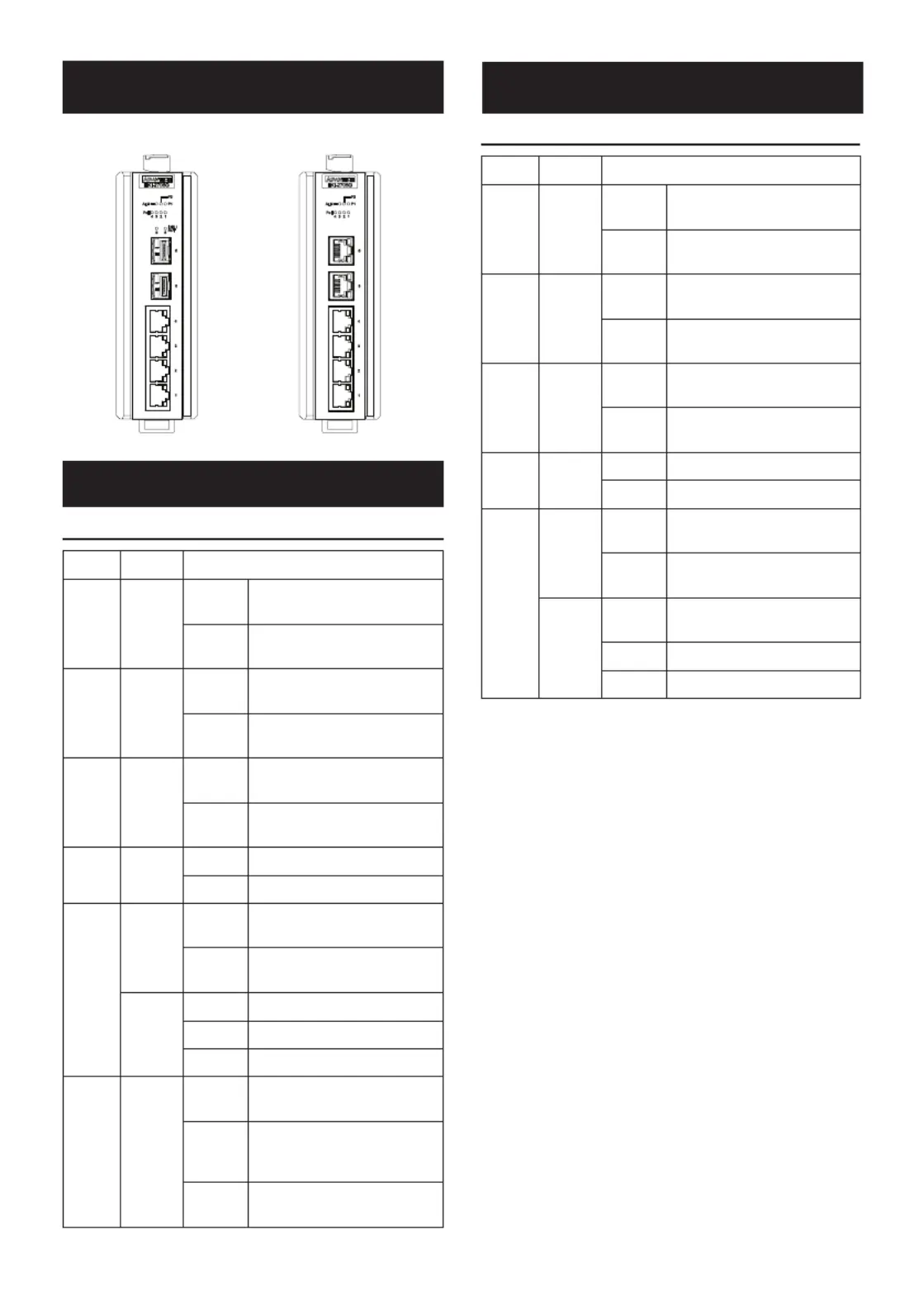

The EKI-2706G PoE switch is unmanaged Ethernet

switches supporting 4 ports PoE+ (Power over Ethernet)

and compliant with IEEE 802.3at/af standards. It provides

up to 30 watts of power per port and fulll the power budget

of max.120 watts on system. The switch provides a relay

output for an event alarm which activates the alarm to notify

administrators. Robust design for harsh environment, din

rail mounting and fast startup with plug and work

The EKI-2706G supports IEEE 802.3/802.3u/802.3z/

802.3ab/802.3x with 10/100/1000 Mbps, full/half-duplex,

auto-negotiation and MDI/MDI-X auto-sensing to provide an

economical solution for your industrial Ethernet network.

Packing List

Before installation, please make sure that you have re-

ceived the following:

• 1 x EKI-2706G Ethernet Switch

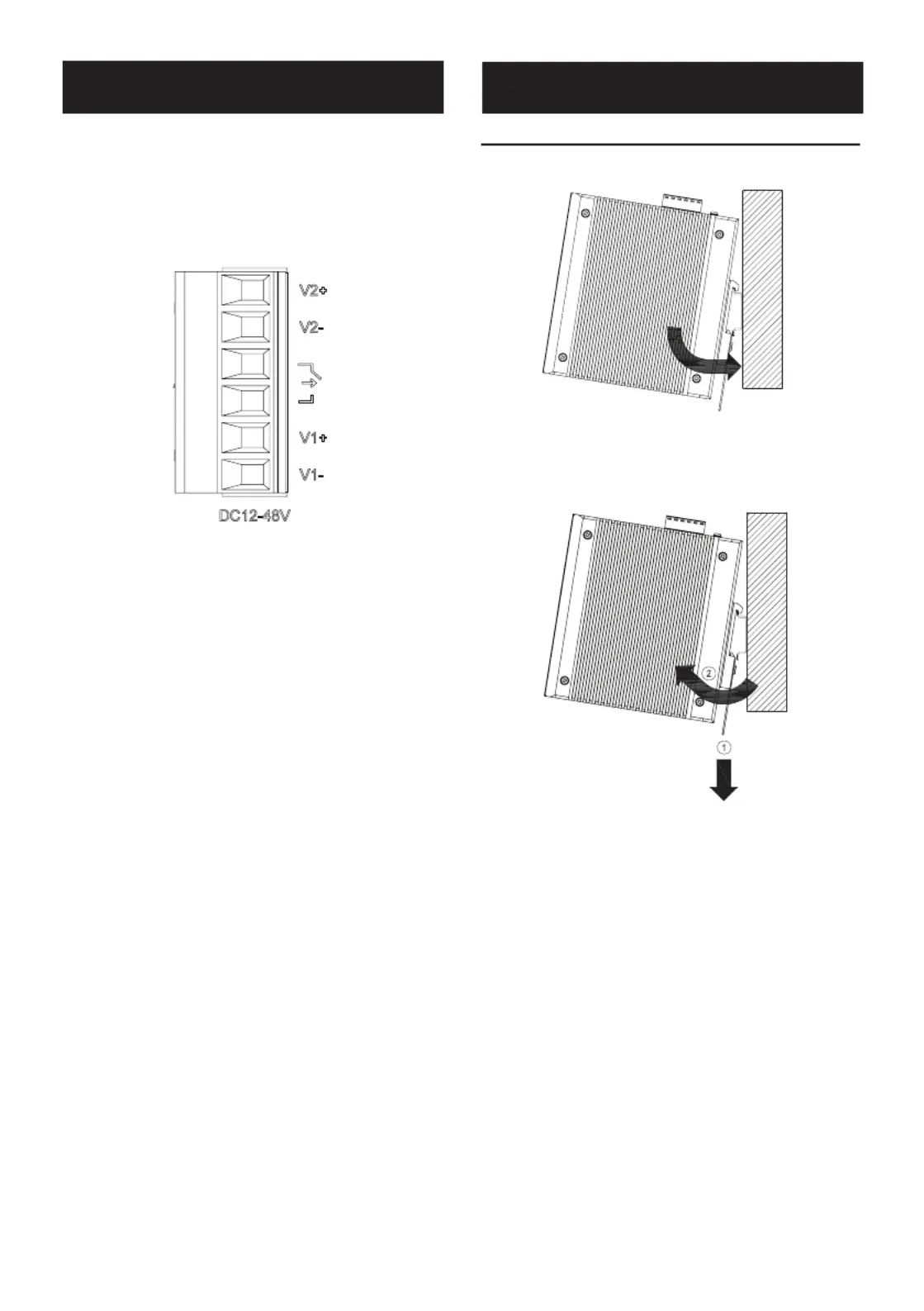

• 1 x DlN-rail mounting brackets with screws

• 1 x EKI-2706G Startup Manual

If anything is missing or damaged, contact your distributor

or sales representative immediately.

User Manual

For more detailed information, please refer to the full

manual which can be found on the Advantech’s website.
