EKI-2701MPI-5G Startup Manual 1

The EKI-2701MPI-5G is a next-generation injector compli-

ant with IEEE 802.3af/at/bt standards. Utilizing Power over

Ethernet (PoE) technology, it delivers both data and power

to Ethernet-enabled devices through a standard CAT6(A)/

CAT7 cable, providing up to 90W.

The EKI-2701MPI-5G allows for exible deployment of

standard and high-powered PD devices, simultaneously

transmitting data and power over a single Ethernet cable

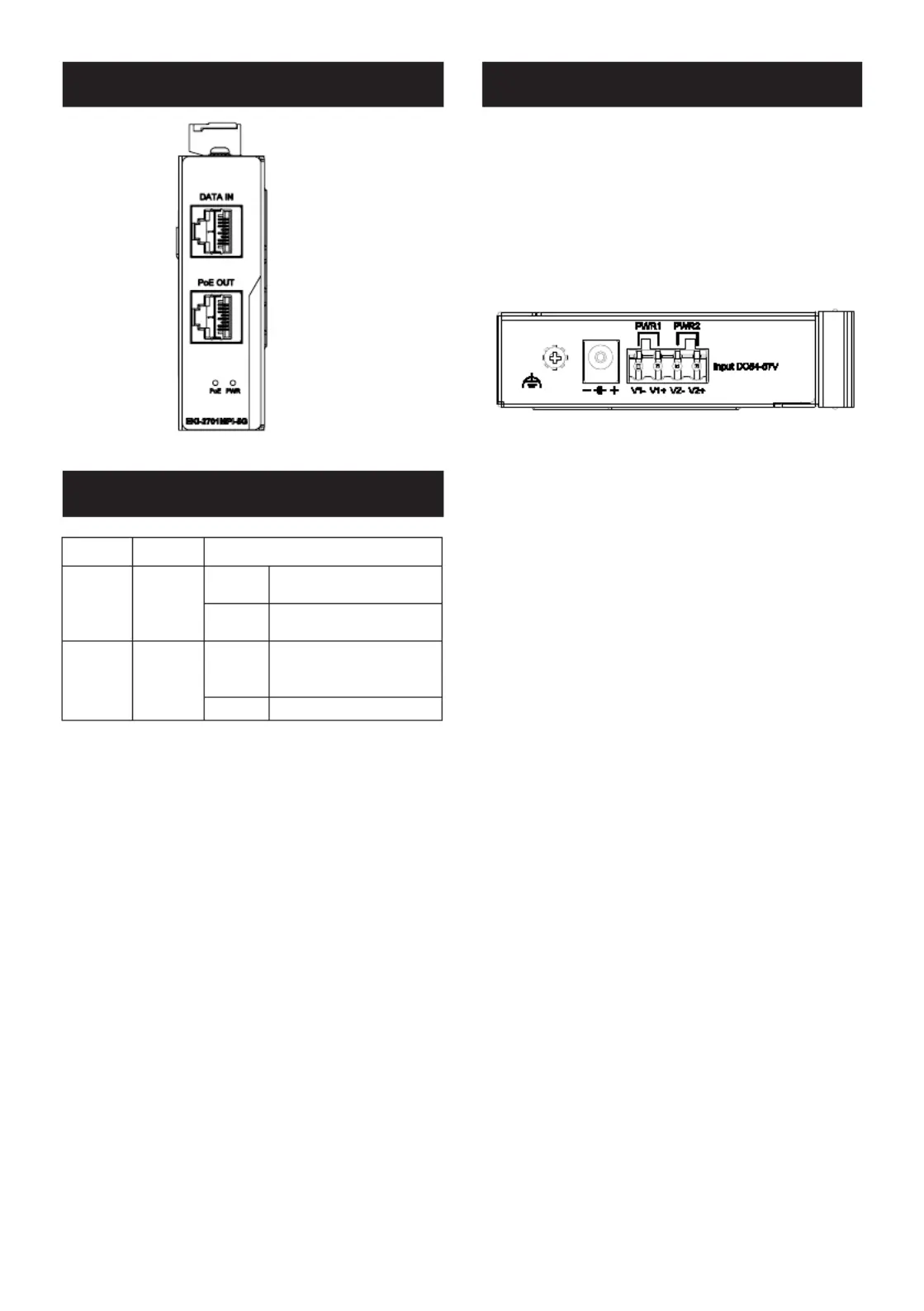

up to 100 meters. It features dual power input options via

a pluggable terminal block or DC jack, and o󰀨ers both

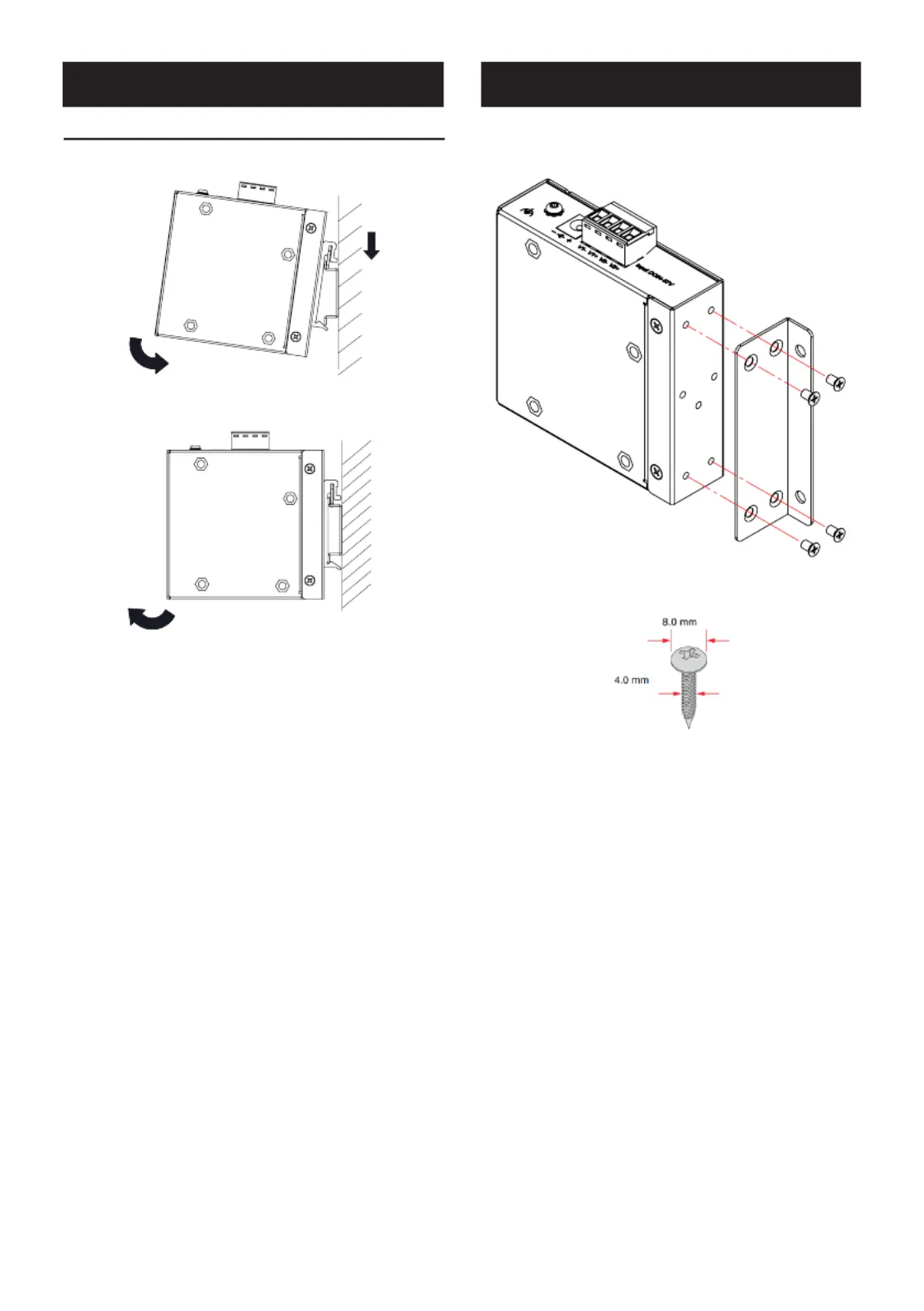

DIN-rail and wall-mounting installation options for added

convenience.

With the EKI-2701MPI-5G, deploying WiFi access points at

a 5Gbps transmission rate can be easy. It supports multi-

data rates of 10M/100M/1000M/2.5G/5G and can provide

up to 90W of PoE power, making it an ideal solution for

high-performance networking needs.

Before installation, please make sure that you have re-

ceived the following:

• 1 x EKI-2701MPI-5G PoE Injector

• 1 x DlN-rail mounting bracket with 3 screws (M3 x 5L)

• 2 x Wall mounting brackets with 4 screws (M3 x 5L)

• 1 x EKI-2701MPI-5G Startup Manual

• 1 x 120W Power Supply (EKI-2701MPI-5GPS)

If anything is missing or damaged, contact your distributor

or sales representative immediately.

EKI-2701MPI-5G Series

Industrial IEEE 802.3bt Multi Data Rate 90W PoE Injector

Startup Manual

General

•Compatibility: IEEE 802.3, 802.3u, 802.3x, 802.3af/at/bt,

802.3ab/802.3bz

•LAN:10/100/1000Base-T(X)/2.5G/5G

•TransmissionDistance:Up to 100 m

•TransmissionSpeed:Up to 5Gbps

•Connectors:2 x 10/100/1000Base-T(X)/2.5G/5G (DATA

IN p1-x1 + PoE OUT X1)

•PowerInput:54~57V

DC

•PowerConsumption:Max. 92W (Full PoE Load)

•Dimensions(WxHxD):84 x 80 x 25 mm

•Enclosure:IP40

•OperatingTemperature:

-EKI-2701MPI-5G-AE: -40 ~ 75°C (-40 ~ 167°F)

- EKI-2701MPI-5GPS-A: 0 ~ 40°C (-32 ~ 104°F)

•StorageTemperature:

- EKI-2701MPI-5G-AE: -40 ~ 85°C (-40 ~ 185°F)

- EKI-2701MPI-5GPS-A:-20 ~ 80°C (-4 ~ 176°F)

•OperatingHumidity:5 ~ 95% (non-condensing)

•StorageHumidity:5 ~ 95% (non-condensing)

•Safety:UL62368

•EMC:CE, FCC Class A

•Warranty:5 years

SpecicationsOverview

For more information about this or other Advantech

products, visit the Advantech website at

http://www.advantech.com

For technical support and customer service, visit the

Advantech support website at

http://www.advantech.com/support

This manual is for EKI-2701MPI-5G.

Part No. 2049270120 Edition 1

August 2024

PackingList
