ECU-P1522LPE Startup Manual 1
Before installation, please make sure that you have re-
ceived the following:
• ECU-P1522LPE card
• Quick Start User Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
For more detailed information on this product, please refer
to the ECU-P1522LPE User Manual on the Website (PDF
format).
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio fre-
quency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in
a residential area is likely to cause interference in which
case the user is required to correct interference at his own
expense.
CE
This product has passed the CE test for environmental
specicationswhenshieldedcablesareusedforexternal
wiring. We recommend the use of shielded cables. This kind
of cable is available from Advantech. Please contact your
local supplier for ordering information.
ECU-P1522LPE 2-Port SFP HSR/PRP Card with Low
Prole PCI Express
Startup Manual
The ECU-P1522LPE is a standard PCIE extension card
with HSR/PRP functions to reduce data transfer packet loss
probability and ensure seamless switching.
• TheECU-P1522LPEsupportsfollowingspecications:
• 2 port SFP Base Ethernet Card with HSR/PRP
• Supports HSR Protocol (IEC 62439-3 Clause 5)
• Supports PRP Protocol (IEC 62439-3 Clause 4)
• Supports IEEE 1588V2
• BUS Type: PCI-Express p1-x1 Gen 1
• Dimensions: 68.9 x 181 x 20.32 mm
• Power Consumption: 12V ±5% @ 500mA typical;
3.3V ±5% @ 600mA typical;
• Operating Temp: -25 ~ 70°C (-13 ~158°F)
• Operating Humidity: 10 ~ 90% RH non-condensing (refer
to IEC 60068-2-3)
After the device driver is installed, you can now install the
ECU-P1522LPE card in your computer.
Please follow the steps below to install the ECU-P1522LPE
card:
1. TURN OFF your computer before installing or removing
anycomponentsonthecomputer.Turnoyourcom-
puter and unplug the power cord and cables.
2. Remove the cover of your computer.
3. Remove the slot cover on the back panel of your
computer.
4. Touch the metal part on the surface of your computer
to neutralize the static electricity that might be on your
body.
5. Insert the ECU-P1522LPE card into a PCI Express
slot. Hold the card only by its edges and carefully align
itwiththeslot.Insertthecardrmlyintoplace.Useof
excessive force must be avoided; otherwise, the card
might be damaged.
6. Fasten the bracket of the PCI Express card on the back
panel rail of the computer with screws.
7. Connect SFP modules to the SFP ports.
8. Replace the cover of your computer chassis.
9. Plug in the power cord and turn on the computer.
Overview Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for ECU-P1522LPE.
Part No. 2041152201
Printed in China
2nd Edition
June 2024
Declaration of Conformity
Hardware Installation
Specications

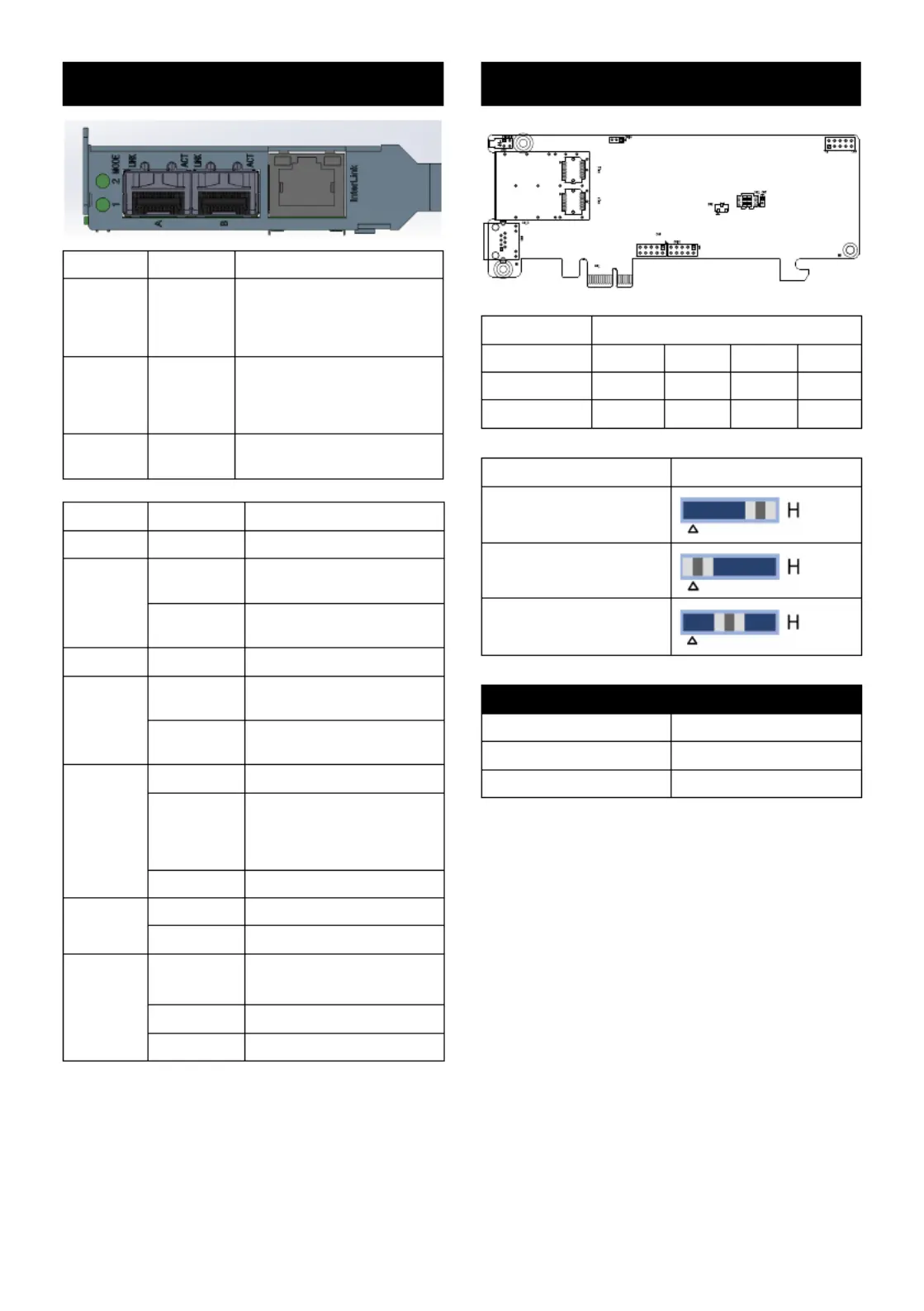

2 ECU-P1522LPE Startup Manual
Name Function Interface
A RedBox_A
100M Base-FX SFP Interface
(Select by SFP MODE)
1000M Base-X SFP Interface
(Select by SFP MODE)
B RedBox_B
100M Base-FX SFP Interface
(Select by SFP MODE)
1000M Base-X SFP Interface
(Select by SFP MODE)
Inter link
RedBox_
Inter link
10/100/1000 Mbps Base-T
Name Function Interface
A_ACT Blinking SFP module A transmit data
A_Link
Yellow
100M Base-FX SFP_A is
linked
Green
1000M Base-X SFP_A is
linked
B_ACT Blinking SFP module B transmit data
B_Link
Yellow
100M Base-FX SFP_B is
linked
Green
1000M Base-X SFP_B is
linked
Mode_1
HSR/PRP
mode
No light Normal switch
Green HSR
Yellow PRP
Mode_2
SFP mode
Yellow 100M Base-FX SFP
Green 1000M Base-X SFP
Intel link
Blink(Green) Inter link port transmit data
Yellow Inter link port 100M linked
Green Inter link port 1000M linked
Connector and LED Assignments
Switch Mode SW1
Normal Switch OFF OFF OFF OFF
HSR OFF ON OFF OFF
PRP ON ON OFF OFF
SFP Mode SW2
1000M Base-FX
100M Base-FX
NC
CN16 PTP mode selection
Jumper choose Function
1-2 Close Disable PTP
2-3 Close (Default) Enable PTP
Switch and Jumper Settings
