AMAX-4817/4820 Startup Manual 1
Before installation, please check that the following items are
included in the shipment:
1. AMAX-4817/4820 module
2. Terminal blocks (see Specications for more details)
3. Startup Manual
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
For more detailed information about this product, download
the latest user manual from the Advantech website.
The AMAX-4817/4820 ESI le can be downloaded from
the Advantech website at http://www.advantech.com.
Every EtherCAT SubDevice information (ESI) le con-
tains the conguration data of an EtherCAT SubDevice
module. Various EtherCAT communication settings can
be dened from the ESI les of connected SubDevice
units as well as the network connection information. ESI
les are saved to the conguration tool to provide net-
work conguration data. Subsequently, the network
conguration data can be downloaded to the EtherCAT
MainDevice unit for conguring an EtherCAT network.
AMAX-4817/4820
Industrial EtherCAT SubDevice Modules
Startup Manual
The AMAX-4817/4820 series comprises industrial EtherCAT
SubDevice modules equipped with the EtherCAT protocol.
The modules’ compact size and integrated DIN-rail mount
kit ensure easy installation in cabinets. The modules also
feature euro-type pluggable terminal blocks and LED in-
dicators that facilitate system setup and maintenance. All
modules are equipped with an isolation circuit that ensures
current protection for demanding industrial applications.
General
• Connectors
- N x 10-pin terminal block (3.81 mm)
(AMAX-4817 N = 2, AMAX-4820 N = 1)
- 2 x 3-pin screw terminal blocks (3.81 mm)
- 2 x RJ-45 (EtherCAT)
• Dimensions:120 x 120 x 40 mm
3
• OperatingTemperature: -20 ~ 60 °C (32 ~ 140 °F)
• StorageTemperature:-40 ~ 70 °C (-40 ~ 158 °F)
• StorageHumidity:5 ~ 95% RH (non-condensing)
• PowerSupply:10 ~ 30 V
DC
Communications
• Interface:EtherCAT
• DataTransferMedium:Ethernet/EtherCAT cable (CAT5
min.), shielded
• DistanceBetweenModules:100 m max. (100BASE-TX)
• CommunicationCycleTime100 μs
• DataTransferRates:100 Mbps
• Conguration:Not required
AnalogInput(AMAX-4817)
• Channels: 8 channels
• Resolution: 16-bit
• InputVoltageRange:0 ~ 10 V, ±10 V, 0~20 mA, ±20 mA
• Common-ModeInputVoltageRange:±275 V
• MeasuringError: < ±0.1%
• IsolationProtection: 2,500 V
DC
• Bandwidth(-3dB):1.375 kHz/ch
PackingList
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the AMAX-4817 and 4820 modules.
Part No. 2001481702
Printed in China
Edition 3
May 2023
Specications
Overview
UserManual
EtherCATSubDeviceInformationFile
2 AMAX-4817/4820 Startup Manual

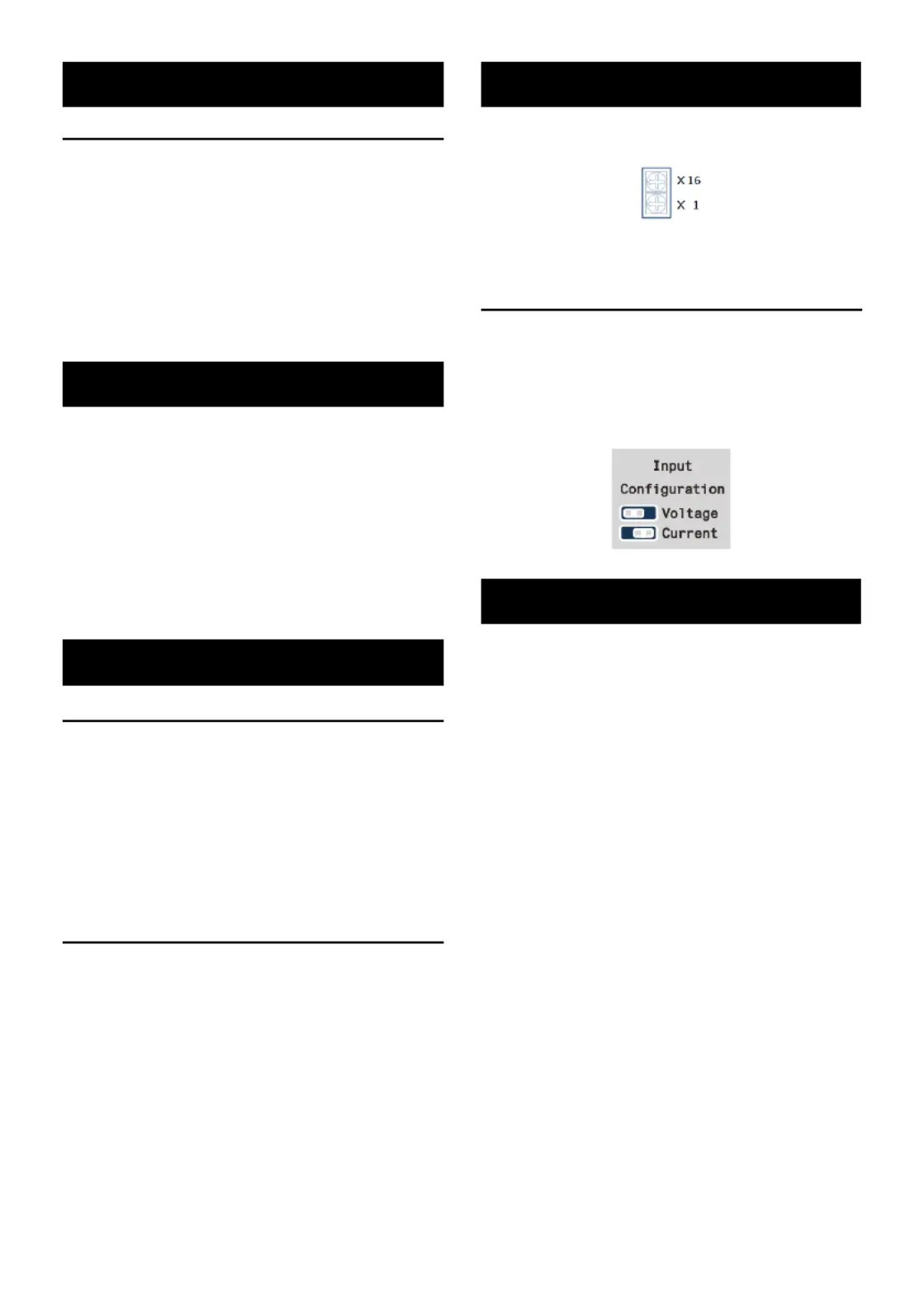

AMAX-4817/4820 modules use two hexadecimal rotary
switches to represent the SubDevice ID (range: 0 ~ 255).
For example, if a user arranges the rotary switches follow-
ing the sequence “4, F”, the SubDevice ID will be set as “4
x 16 + F x 1= 79”.
Switches
Only for AMAX-4817-B2. SW2~SW8 are used to hardware
congure the analog input as voltage measurement (0 ~ 10
V, ±10 V) or current measurement (0~20 mA, ±20 mA). The
default setting is voltage measurement.
Otherwise, please change the software conguration
0x218n:01 (n from 0 to 7 refer to ch.0 to ch.7), 0 for ±10 V /
±20 mA,1 for 0 ~ 10 V / 0 ~ 20 mA.
AMAX-4817/4820 modules feature two power input terminals,
an input power range of +10 to +30 V
DC
, and power redundan-
cy support. For modules connected to two power input sourc-
es, if one source is inactive or interrupted, the other power
source can take over immediately. The AMAX-4817/4820
modules can operate with only a single power source.
AnalogOutput(AMAX-4820)
• Channels: 4 channels
• Resolution: 16-bit
• VoltageOutputRange: 0 ~ 5 V, 0 ~ 10 V, ±5 V, ±10 V
• CurrentOutputRange:0 ~ 20 mA, 4 ~ 20 mA
• Load:> 1 kΩ (voltage output)
• < 625 Ω (current output)
• OutputError: < ±0.1%
• LoadVoltage:5 ~ 40 V
DC
• IsolationProtection:2,500 V
DC
1. Download the AMAX-4817/4820 user manual and
ESI le from the Advantech website at http://www.
advantech.com.
2. Import the ESI le to create an EtherCAT network
information (ENI) le using either:
(1) Advantech Common Motion Utility
(with a PCI-1203 EtherCAT MainDevice card)
(2) Other EtherCAT MainDevice software, such as
TwinCAT or Acontis
3. Use the MainDevice utility to test AMAX-4817/4820
modules.
FCCClassA
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in residential
areas is likely to cause interference; in such cases, users
are required to correct the interference at their own expense.
CE
This product has passed the CE test for environmen-
tal specications when shielded cables are used for
external wiring. We recommend the use of shield-
ed cables. Advantech does provide shielded cables.
Contact your local supplier for ordering information.
RotatarySwitches
DeclarationofConformity
Specications(Cont.)
Power
Installation
AMAX-4817/4820 Startup Manual 3

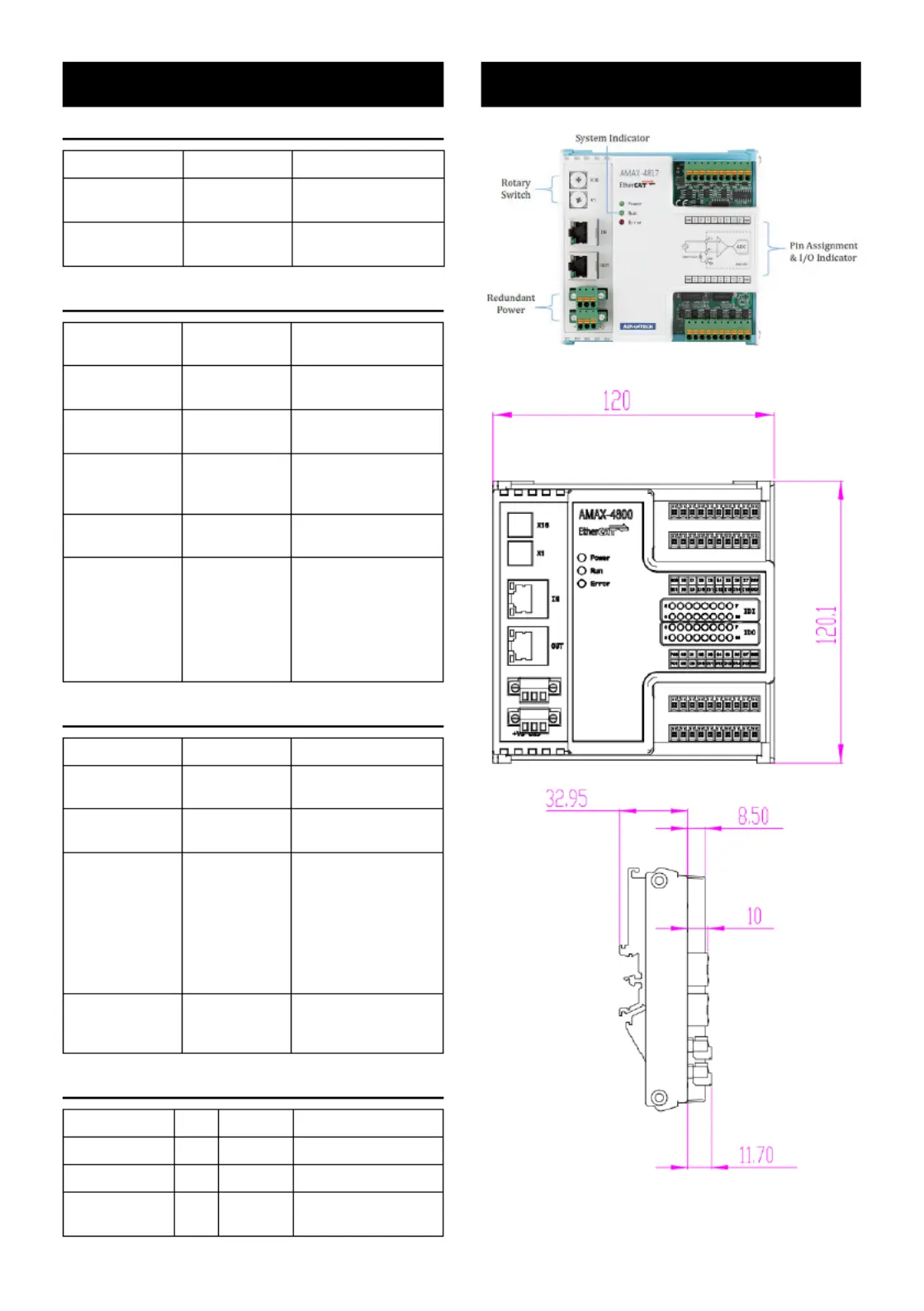

LEDs
PowerIndicator
IndicatorState SystemState Description
O Power o The system is not on /
power is o.
On Power on The system is on /
power is on.
RunIndicator
IndicatorState SubDevice
State
Condition
O Initialization The device is in the
Initialization state.
Blinking Pre-Opera
-
tional
The device is in the
Pre-Operational state.
Single ash Safe Opera
-
tional
The device is in the
Safe Operational
state.
On Operational The device is in the
Operational state.
Flickering Bootstrap The device is booting
and has not yet en
-
tered the Initialization
state/the device is in
the Bootstrap state /
a rmware download
is in progress.
ErrorIndicator
IndicatorState ErrorName Description
O No error The device is in work
-
ing condition.
Blinking Invalid congu
-
ration
General conguration
error.
Single ash Local error A SubDevice ap
-
plication has changed
the EtherCAT state
autonomously due to
local error / the error
indicator bit is set to
1 in the AL Status
register.
Double ash Watchdog
timeout
An application
watchdog timeout has
occurred.
LinkIndicator(onRJ-45)
IndicatorState Link Activity Description
On No Port open/connectedYes
Flickering Port open/connectedYes Yes
O No Not
applicable
Port closed/discon
-
nected
Dimensions
