Sinks manufactured by ADVANCE TABCO

®

are designed and constructed for the use of

liquid containment. Suggested applications include Food Preparation, Manufacturing,

Cooking, Laboratory and Service and the like. ADVANCE TABCO

®

does not recommend

product use for activities employing harsh and active chemicals. Please consult factory

regarding unusual applications.

CHECK FOR CONCEALED DAMAGE

FILE CLAIM WITH DELIVERING FREIGHT CARRIER

EDGEWOOD, NY 11717-8380

© ADVANCE TABCO, OCTOBER 2019

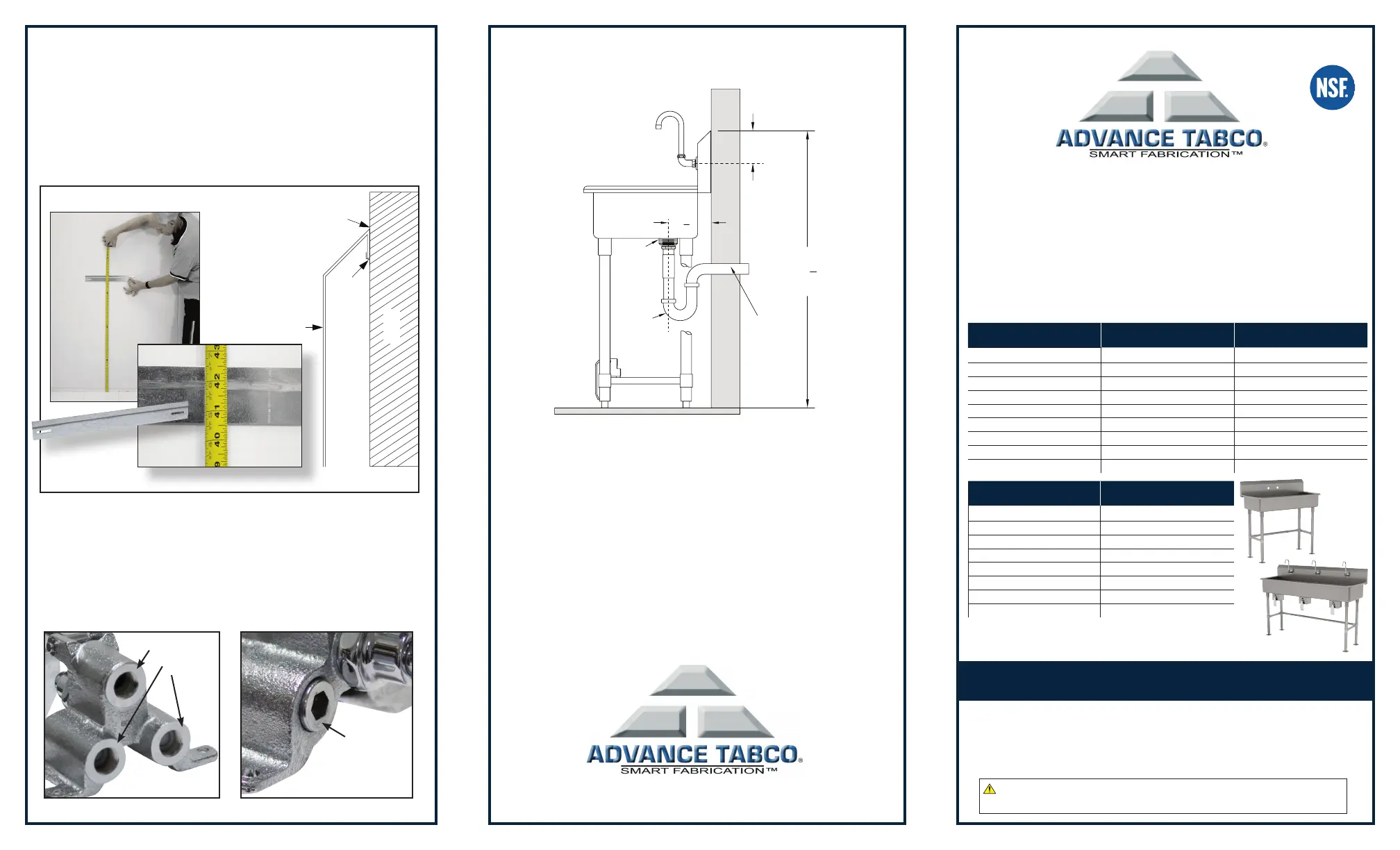

Installation Instructions for

FREE STANDING

NSF MULTI-STATION SINKS

FS-FM/FC-FM SERIES

Suggested Rough Plumbing Dimensions

Figure 7Figure 6

3/8” NPT

Females

Mixing

Valve

42

1

2

"

L

C

P-Trap

Drain

To Waste Line

6

1

2

"

5

"

L

C

For Further Assistance

Contact Customer Service at:

800-645-3166

or

[email protected]

WALL BRACKET(S) INSTALLATION

Mount the provided wall “Z” brackets to wood studs or

cement walls for strong support. Mount the bracket(s) at

recommended height of 42.5” from the finished floor to

the to the top of the bracket (Figure 6).

Slide the sink onto the wall brackets and be sure the sink

sits securely on them.

Figure 5

Back Splash

Silicone Sealer

"Z"

Bracket

Wall

Actual “Z”

Bracket Shown

Figure 6

WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.

WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the

State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.

WARNING: Faucets on this page may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.

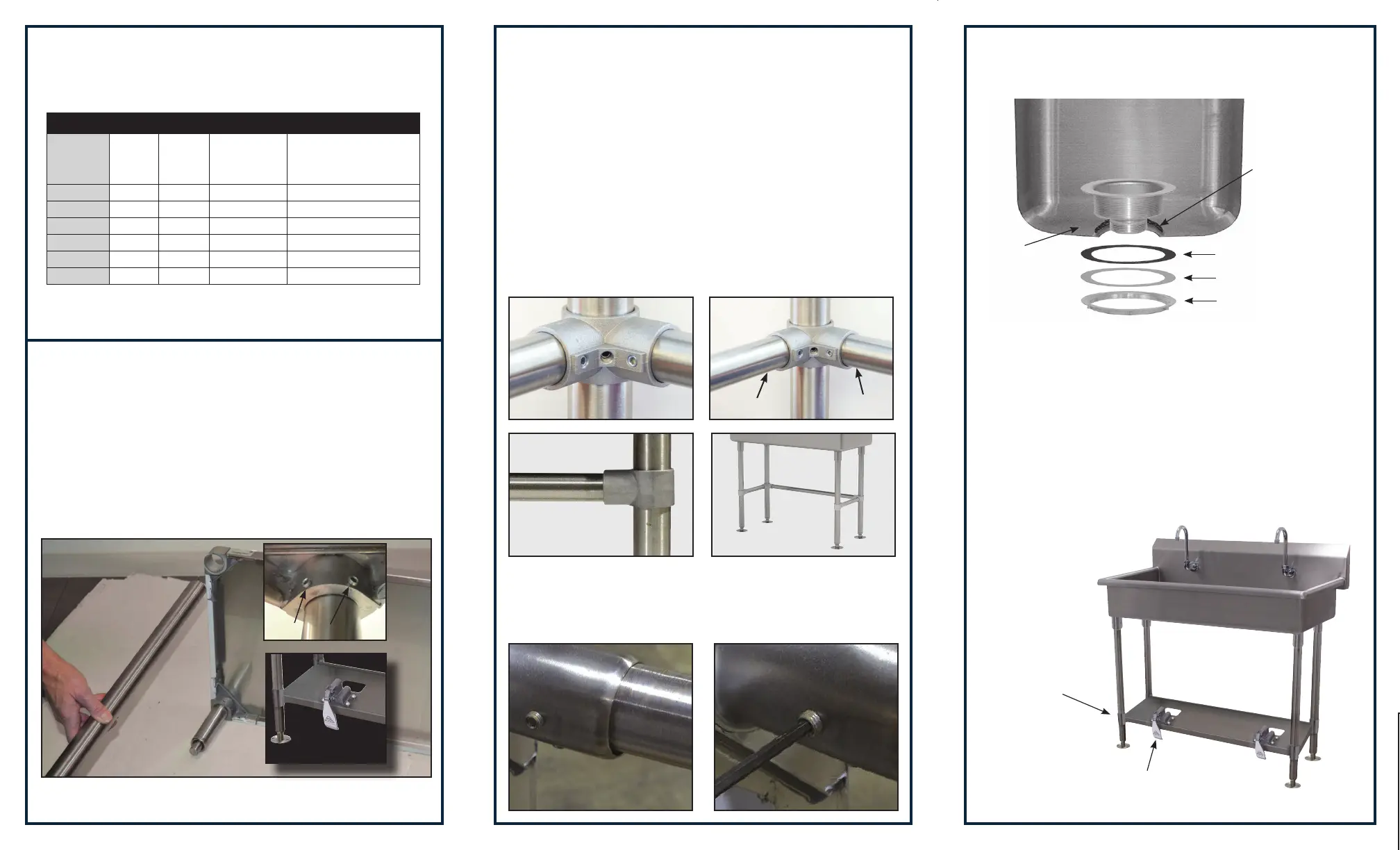

FOR KNEE VALVE (KV) OR TOE-PUSH VALVE (FV) MODELS:

Connect water supply lines to valve(s) and water supply

line(s) from valve(s) to faucet(s). Connect drain(s).

(Figure 6).

Adjust mixing valve at front of valve (Figure 7).

KNEE

OPERATED FAUCETS

TOE-PUSH

OPERATED FAUCETS

Model #Model #

FC or FS-FM-23KV/FC or FS-FM-23KVFC or FS-FM-23FV/FC or FS-FM-23FV

FC or FS-FM-40KV/FC or FS-FM-40KVFC or FS-FM-40FV/FC or FS-FM-40FV

FC or FS-FM-60KV/FC or FS-FM-60KVFC or FS-FM-60FV/FC or FS-FM-60FV

FC or FS-FM-80KV/FC or FS-FM-80KVFC or FS-FM-80FV/FC or FS-FM-80FV

FC or FS-FM-100KV/FC or FS-FM-100KV

FC or FS-FM-100FV/FC or FS-FM-100FV

FC or FS-FM-120KV/FC or FS-FM-120KV

FC or FS-FM-120FV/FC or FS-FM-120FV

FC or FS-14-21KV-FM/FC or FS-16-25KV-FMFC or FS-14-21FV-FM/FC or FS-16-25FV-FM

NO FAUCET

INCLUDED

MANUAL FAUCETS

INCLUDED

ELECTRONIC

OPERATED FAUCETS

Model #Model #Model #

FC or FS-FM-1-ADAFC or FS-FM-1-ADA-FFC or FS-FM-1-EFADA

FC or FS-FM-23/FC or FS-FM-23-ADAFC or FS-FM-23-F/FC or FS-FM-23-ADA-FFC or FS-FM-23EF/FC or FS-FM-23EFADA

FC or FS-FM-40/FC or FS-FM-40-ADAFC or FS-FM-40-F/FC or FS-FM-40-ADA-FFC or FS-FM-40EF/FC or FS-FM-40EFADA

FC or FS-FM-60/FC or FS-FM-60-ADAFC or FS-FM-60-F/FC or FS-FM-60-ADA-FFC or FS-FM-60EF/FC or FS-FM-60EFADA

FC or FS-FM-80/FC or FS-FM-80-ADAFC or FS-FM-80-F/FC or FS-FM-80-ADA-FFC or FS-FM-80EF/FC or FS-FM-80EFADA

FC or FS-FM-100/FC or FS-FM-100-ADAFC or FS-FM-100-F/FC or FS-FM-100-ADA-FFC or FS-FM-100EF/FC or FS-FM-100EFADA

FC or FS-FM-120/FC or FS-FM-120-ADAFC or FS-FM-120-F/FC or FS-FM-120-ADA-FFC or FS-FM-120EF/FC or FS-FM-120EFADA

FC or FS-14-21-FM/FC or FS-16-25-FMFC or FS-14-21-FM-F/FC or FS-16-25-FM-FFC or FS-14-21EF-FM/FC or FS-16-25EF-FM
