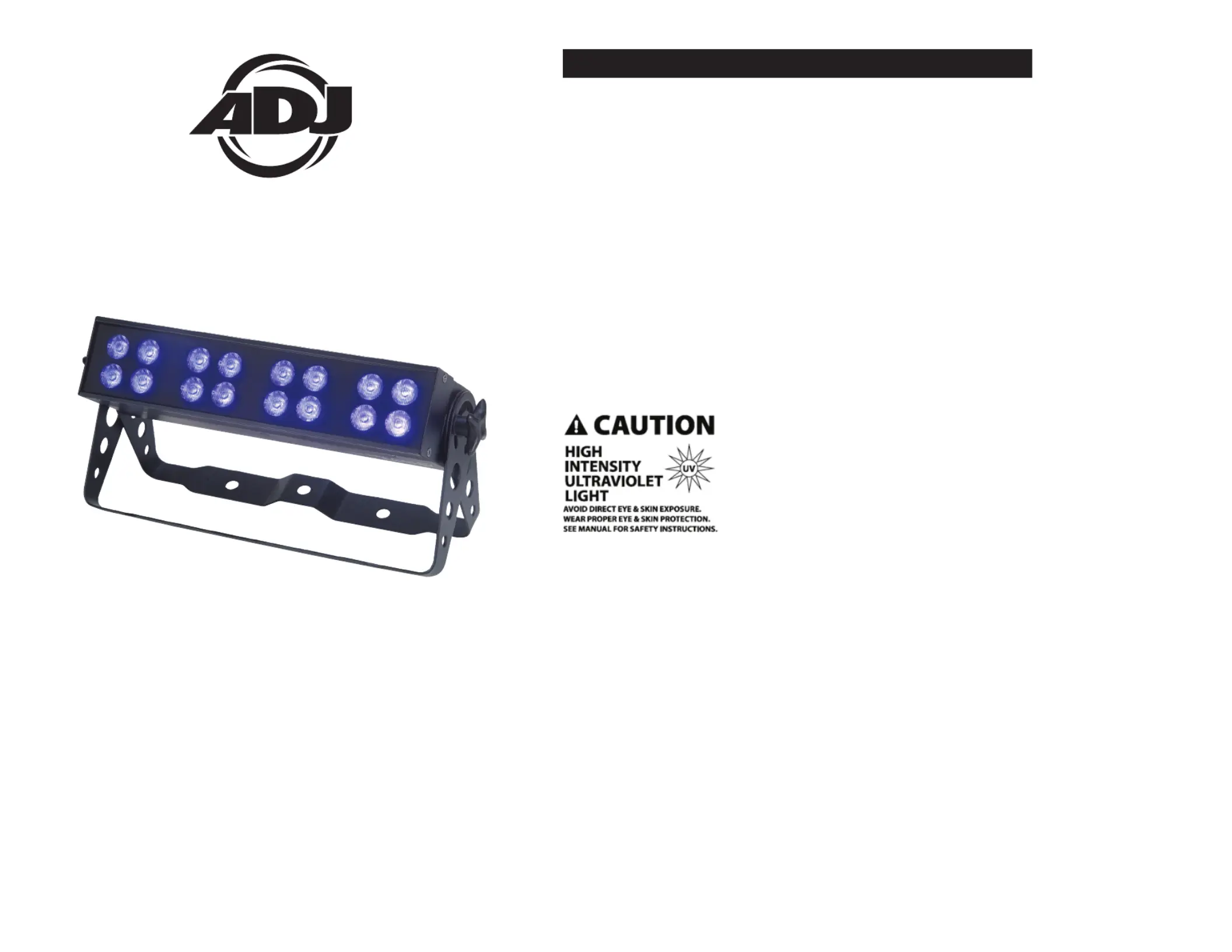

User Instructions

U D nVLE Bar16 Introdu ioct

©American DJ® - www.americandj.com - UVLED Bar16 Instruction Manual Page 2

Rev. 04/19

Unpacking: Thank you for purchasing the UVLED Bar16 by American

®. Every UVLED Bar16 has been thoroughly tested and has been

shipped in perfect operating condition. Carefully check the shipping

carton for damage that may have occurred during shipping. If the

carton appears to be damaged, carefully inspect your for any ﬁxture

damage and be sure all access ies necessary to operate the unit has or

arrived intact. In the case damage has been found or parts are miss-

ing, please contact our toll free customer support number for further

instructions. Do not return this unit to your dealer without contact-ﬁrst

ing customer support.

Introduction: The UVLED Bar16 is part of American DJ’s continu-

ing pursuit for creating high quality affordable intelligent res. The fixtu

UVLED Bar16 is a DMX intelligent LED color wash. This wash can be

used in a stand alone mode or connected in a Master/Slave -conﬁgu

ration. The unit can also be controlled via DMX controller. This unit

has four operating modes: Static mode, program mode, sound active

mode, and DMX controlled.

RISK GROUP 3 - RISK OF EXPOSURE TO

ULTRAVIOLET (UV) RADIATION!

FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF

ULTRAVIOLET LIGHT

WEAR PROPER EYE AND SKIN PROTECTION.

AVOID PROLONGED PERIODS OF EXPOSURE.

AVOID WEARING WHITE COLOR CLOTHING AND/OR

USING (UV) PAINTS ON SKIN.

AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT

DISTANCES SHORTER THAN 11 feet (3.3m).

DO NOT OPERATE FIXTURE WITH DAMAGED/MISSING EXTERNAL COVER

PROTECTIVE LENS.

DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT

DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE

LIGHT/RADIATION OUTPUT.

INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT

EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE

MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET

(UV) LIGHT EMITTED FROM THIS FIXTURE.

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the environment. Please turn

off all electrical products when they are not in use. To avoid power

consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

UV LED BAR 16

UVLED Bar16 Safety Precautions

©American DJ® - www.adj.com - UVLED Bar16 Instruction Manual Page 4©American DJ® - www.adj.com - UVLED Bar16 Instruction Manual Page 3

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken. Do not attempt to remove or break off the ground

prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out`

doors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by

t he manufacturer. See page 3 for cleaning details.

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (inclu-

d ing amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.

UVLED Bar16 Warranty Registration

The UVLED Bar16 carries a 3 year (1095 days) limited warranty.

Please fill out the enclosed warranty card to validate your purchase

and warranty. You may also register your product online at www.

americandj.com. All returned service items whether under warranty or

not, must be freight pre-paid and accompany a return authorization

(R.A.) number. If the unit is under warranty you must provide a copy

of your proof of purchase invoice. Please contact American DJ® cus-

tomer support for a R.A. number.

UVLED Bar16 Features

To optimize the performance of this product, please read these

operating instructions carefully to familiarize yourself with the basic

operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please

keep this manual with the unit, for future reference.

UVLED Bar16 General Instructions

• 4 Operating Modes

• Electronic Dimming 0-100%

• Built in Microphone

• DMX-512 protocol

• 3 DMX Channels

UVLED Bar16 Cleaning

Due to fog residue, smoke, and dust cleaning the internal and exter-

nal optical lenses must be carried out periodically to optimize light

output.

1. Use normal glass cleaner and a soft cloth to wipe down the

outside casing.

2. Clean the external optics with glass cleaner and a soft cloth

every 20 days.

3. Always be sure to dry all parts completely before plugging

the unit back in.

Cleaning frequency depends on the environment in which the fixture

operates (i.e. smoke, fog residue, dust, dew).

P The American DJ UVLED Bar16 voltage is between ower Supply: ®

9v ~ 240v. Because of voltage setup of the unit you do not have to

worry about wall output voltage. This unit is compatiable with all wall

outputs. Be sure to only use the included I.E.C. power cable supplied

with the unit, this cable matches the current requirements of the unit.

DMX-512: DMX is short for Digital Multiplex. This is a universal pro-

tocol used as a form of communication between intelligent fixtures

and controllers. A DMX controller sends DMX data instructions from

the controller to the fixture. DMX data is sent as serial data that trav-

els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-

minals located on all DMX fixtures (most controllers only have a DATA

“OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of

different manufactures to be linked together and operate from a single

controller, as long as all xtures and the controller are DMX compli-

ant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

or anywhere in the middle. When a fixture is assigned a DMX address

of 1, the DMX controller knows to send DATA assigned to address 1

to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation):

The UVLED Bar16 can be controlled via DMX-512 protocol. The UVLED

Bar16 three channel DMX unit. The DMX address is set on the side

panel of the UVLED Bar16. Your unit and your DMX controller require

a approved DMX-512 110 Ohm Data cable for data input and data

output (Figure 1). We recommend Accu-Cable

DMX cables. If you are making your own cables,

be sure to use standard 110-120 Ohm shielded

cable (This cable may be purchased at almost

all professional sound and lighting stores). Your

cables should be made with a male and female

XLR connector on either end of the cable. Also

remember that DMX cable must be daisy chained

and cannot be split.

©American DJ® - www.adj.com - UVLED Bar16 Instruction Manual Page 5

UVLED Bar16 Set Up

©American DJ® - www.adj.com - UVLED Bar16 Instruction Manual Page 6

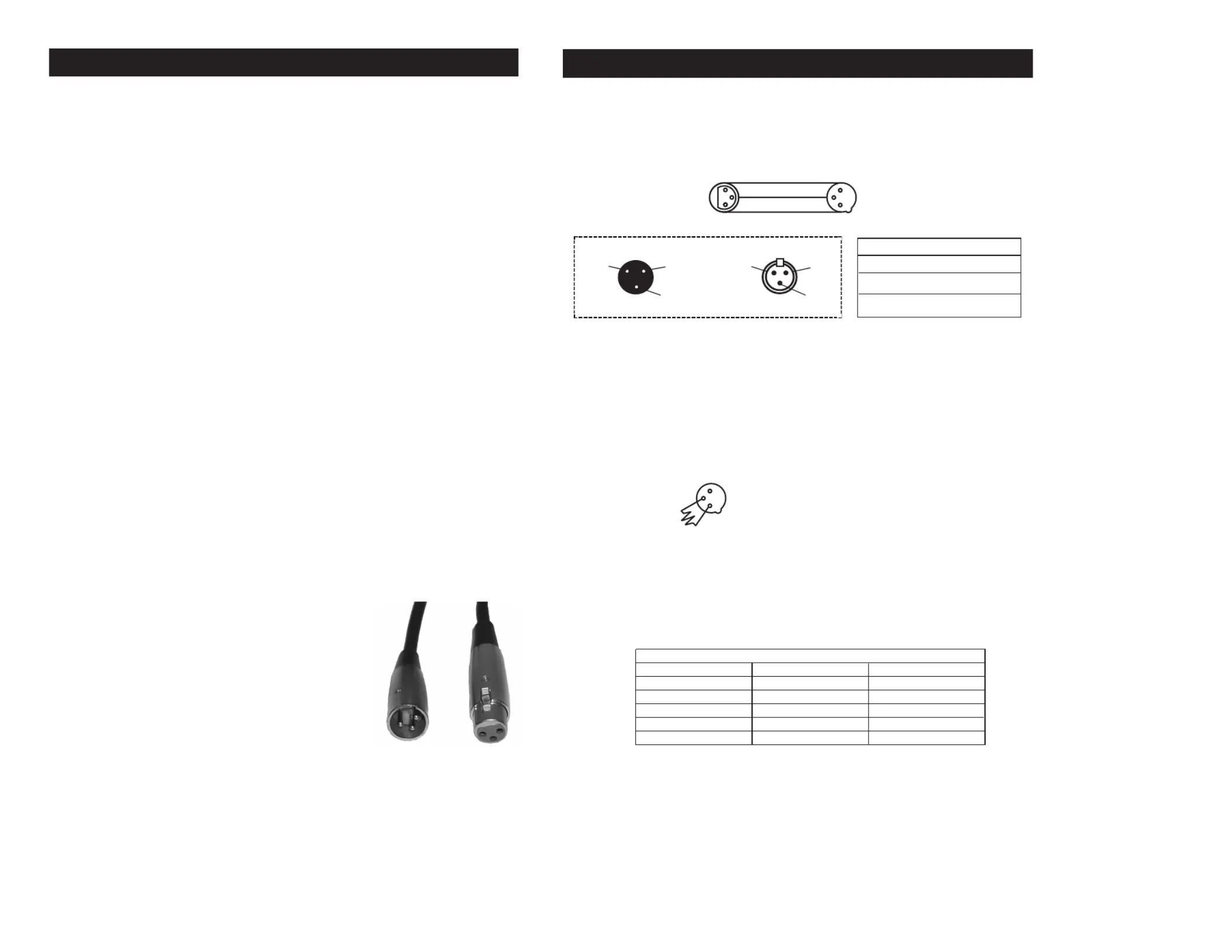

Figure 1

Notice: Be sure to follow gures two and three when making your own

cables. Do not use the ground lug on the XLR connector. Do not con-

nect the cable’s shield conductor to the ground lug or allow the shield

conductor to come in contact with the XLR’s outer casing. Grounding

the shield could cause a short circuit and erratic behavior.

UVLED Bar16 Set Up

DMX512 IN

3-PIN XLR

DMX +

DMX -

COMMON

DMX512 OUT

3-PIN XLR

Figure 2

Figure 3

1 Ground

XLR Male Socket

XLR Pin Conguration

3 Hot

2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Ground

Special Note: Line Termination.

When longer runs of cable are

used, you may need to use a terminator on the last unit to avoid erratic

behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-

nected between pins 2 and 3 of a male XLR connector (DATA + and

DATA -). This unit is inserted in the female XLR connector of the last

unit in your daisy chain to terminate the line. Using a cable terminator

(ADJ part number Z-DMX/T) will decrease the possibilities of erratic

behavior.

Termination educes signalr errors and

avoids signal transmission problems

and interference. It is always advisable

to connect a DMX terminal, (Resistance

120 Ohm 1/4 W) between PIN 2 (DMX-)

and PIN 3 (DMX +) of the last fixture.

Figure 4

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin XLR

connectors for DATA transmission in place of 3-pin. 5-pin XLR xtures

may be implemented in a 3-pin XLR DMX line. When inserting stan-

dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be

used, these adaptors are readily available at most electric stores. The

chart below details a proper cable conversion.

Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)

Pin 1

Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion

Product specificaties

Merk:	Adj
Categorie:	Niet gecategoriseerd
Model:	UVLED BAR16
Ingebouwd display:	Ja
Soort lamp:	LED
Stroombron:	AC
Land van herkomst:	Verenigde Staten
Ingangsspanning:	100 - 240 V
Levensduur lamp:	50000 uur
Frequentie:	50 - 60 Hz
Ophangsysteem voor aan de muur:	Ja
Geschikt voor gebruik binnen:	Ja
Type product:	Disco-spotlight
