User Instructions
Mega Beam Bar Introduction
ADJ Products, LLC - www.adj.com - Mega Beam Bar User Manual Page 2
5/13
Unpacking: Thank you for purchasing the Mega Beam Bar by ADJ
Products, LLC. Every Mega Beam Bar has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping.
If the carton appears to be damaged, carefully inspect your xture for
any damage and be sure all accessories necessary to operate the unit
has arrived intact. In the case damage has been found or parts are
missing, please contact our toll free customer support number for fur-
ther instructions. Do not return this unit to your dealer without rst con-
tacting customer support.
Introduction: The ADJ Mega Beam Bar is part of a continuing pursuit
to create high quality intelligent lighting. The Mega Beam Bar is an
linear fixture that produces 16 sharp, 13.5 degree beams of light. This
lighting system features six RGB color mixing LED fixtures. This xture
can be used in a stand alone mode or connected in a Master/Slave
conguration. This system has six operating modes: Sound Active
mode, Auto Run mode, Built-In Program mode, Static Color Mode,
RGB dimmer mode, and DMX control mode. This fixture is suitable for
theaters, studios, retail stores, and other similar locations.
Customer Support: ADJ Products, LLC provides a customer support
line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.adj.com for any comments or sugges-
tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacic Standard Time.
Voice: (323) 582-3322
Fax: (323) 582-3108
E-mail: support@adj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.
MEGA BEAM BAR
Mega Beam Bar Safety Precautions
ADJ Products, LLC - www.adj.com - Mega Beam Bar User Manual Page 4ADJ Products, LLC - www.adj.com - Mega Beam Bar User Manual Page 3
• Mulit-Colors
• 3 Operating Modes
• Electronic Dimming 0-100%
• Built in Microphone
• DMX-512 protocol
• 3-Pin DMX Connection
• 4 DMX Modes: 2 Channel Mode, 4 Channel Mode, 8 Channel
Mode, & 10 Channel Mode
• UC3 Compatiable (Not Included)
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break off the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 17 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu-
d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Mega Beam Bar Warranty Registration
Mega Beam Bar Features
The Mega Beam Bar carries a 3 year limited warranty. Please fill out
the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.) number. The R.A. number
must be clearly written on the outside of the return package. A brief
description of the problem as well as the R.A. number must also be
written down on a piece of paper included in the shipping carton. If
the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain a R.A. number by contacting our
customer support team on our customer support number. All pack-
ages returned to the service department not displaying a R.A. number
on the outside of the package will be returned to the shipper.
The unit should be mounted using a mounting clamp (not provided),
afxing it to the mounting bracket that is provided with the unit.
Always ensure that the unit is rmly xed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10
times the unit’s weight. Also, always use a safety cable that can hold
12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be
installed in a place where it is out of the reach of people’s grasp.
Mega Beam Bar Installation
Power Supply: The ADJ Mega Beam Bar contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged into
a power source. With this switch there is no need to worry about the
correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that trav-
els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-
minals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
different manufactures to be linked together and operate from a single
controller, as long as all xtures and the controller are DMX compli-
ant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):
The Mega Beam Bar can be controlled via DMX-512 protocol. The Mega
Beam Bar has 4 DMX channel modes, please see page 8 for the different
modes. The DMX address is set on the back panel of the Mega Beam Bar.

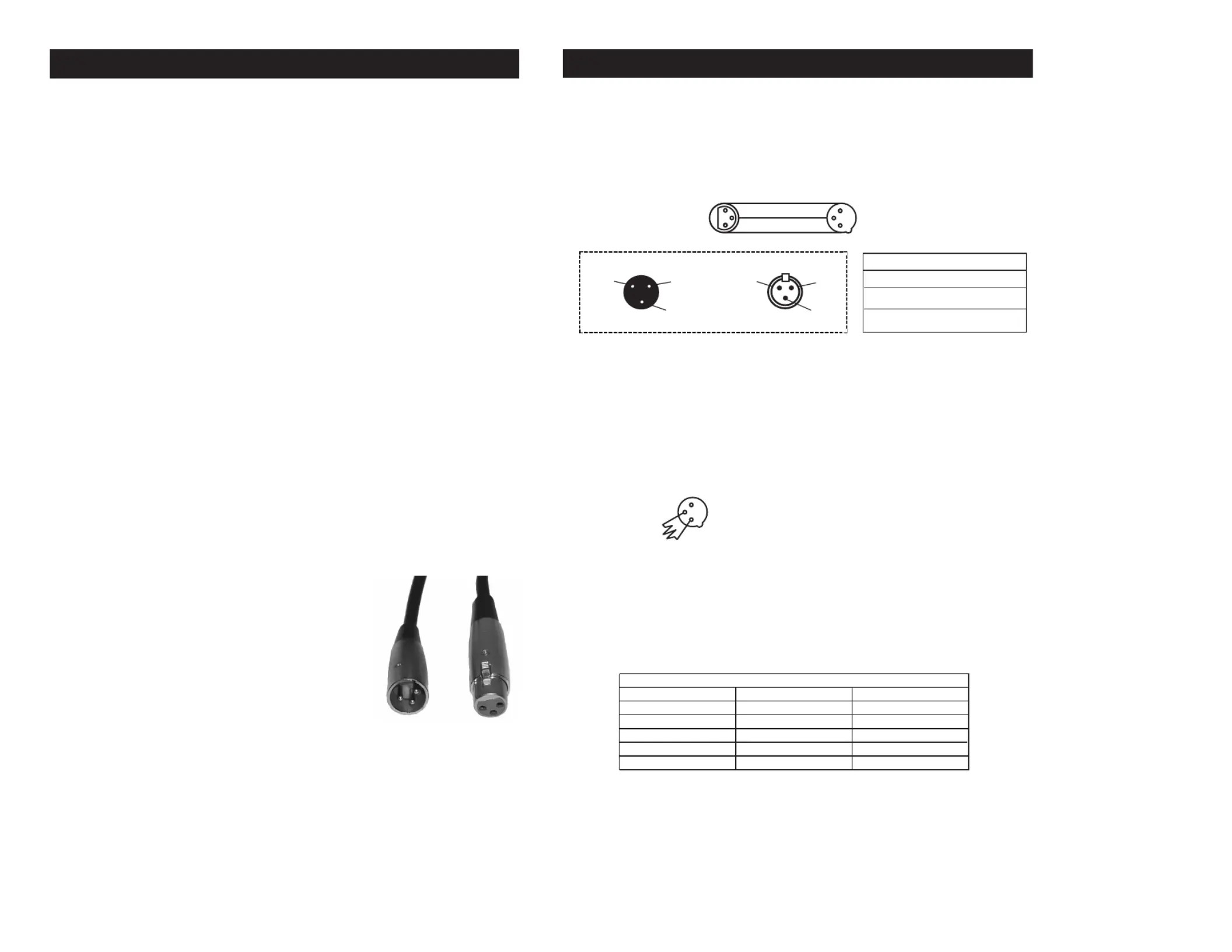

Your unit and your DMX controller require a stan-
dard 3-pin XLR connector for data input and data
output (Figure 1). We recommend Accu-Cable
DMX cables. If you are making your own cables,
be sure to use standard 110-120 Ohm shielded
cable (This cable may be purchased at almost all
pro lighting stores). Your cables should be made
with a male and female XLR connector on either
end of the cable. Also remember that DMX cable
must be daisy chained and cannot be split.
ADJ Products, LLC - www.adj.com - Mega Beam Bar User Manual Page 5
Mega Beam Bar Set Up
ADJ Products, LLC - www.adj.com - Mega Beam Bar User Manual Page 6
Figure 1
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
Mega Beam Bar Set Up
DMX512 IN
3-PIN XLR
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 2
Figure 3
1 Ground
1 Ground
XLR Male Socket
XLR Pin Conguration
3 Hot
2 Cold
2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
1
2
3
Termination educes signalr errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
Figure 4
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Do Not Use
Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
Product specificaties
| Merk: | Adj |
| Categorie: | Niet gecategoriseerd |
| Model: | Mega Beam Bar |
Heb je hulp nodig?
Als je hulp nodig hebt met Adj Mega Beam Bar stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Niet gecategoriseerd Adj
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
Handleiding Niet gecategoriseerd
- Royal Catering
- Kenko
- BIG
- (Recovery)
- Xmusic
- Connection
- Pitsos
- Russound
- Smart
- Acer
- LinkedPRO
- Crystal Video
- GoXtreme
- MYVU
- Pearl Sports
Nieuwste handleidingen voor Niet gecategoriseerd
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
