Pagina 1/14

User Instructions

7/15

specications, diagrams, images, and instructions herein are

subject to change without notice. ADJ Products, LLC logo and

identifying product names and numbers herein are trademarks

of ADJ Products, LLC. Copyright protection claimed includes all

forms and matters of copyrightable materials and information

now allowed by statutory or judicial law or hereinafter granted.

Product names used in this document may be trademarks or

registered trademarks of their respective companies and are

hereby acknowledged. All non-ADJ Products, LLC brands and

product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby dis-

claim any and all liabilities for property, equipment, building, and

electrical damages, injuries to any persons, and direct or indi-

rect economic loss associated with the use or reliance of any

information contained within this document, and/or as a result

of the improper, unsafe, unsucient and negligent assembly,

installation, rigging, and operation of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

MEGA 64 HEX PAK

ADJ Products, LLC - www.adj.com - Mega 64 HEX Pak User Manual Page 3

• Multi-Colors

• Five Operating Modes

• Electronic Dimming 0-100%

• Built in Microphone

• DMX-512 protocol

• 3-Pin DMX Connection

• Five DMX Modes: 6 Channel Mode, 7 Channel Mode, 8 Channel

Mode, 11 Channel Mode, and 12 Channel Mode.

• ADJ LED RC4 compatiable (Included)

• Power Cord Daisy Chain (See page 24)

Mega 64 HEX Pak Warranty Registration

Mega 64 HEX Pak Features

The Mega 64 HEX Pak 2 year limited warranty. Please fill out carries a

the enclosed warranty card to validate your purchase. All returned

service items whether under warranty or not, must be freight pre-paid

and accompany a return authorization (R.A.) number. The R.A. number

must be clearly written on the outside of the return package. A brief

description of the problem as well as the R.A. number must also be

written down on a piece of paper included in the shipping carton. If

the unit is under warranty, you must provide a copy of your proof of

purchase invoice. You may obtain a R.A. number by contacting our

customer support team on our customer support number. All pack-

ages returned to the service department not displaying a R.A. number

on the outside of the package will be returned to the shipper.

The unit should be mounted using a mounting clamp (not provided),

axing it to the mounting bracket that is provided with the unit.

Always ensure that the unit is rmly xed to avoid vibration and slip-

ping while operating. Always ensure that the structure to which you

are attaching the unit is secure and is able to support a weight of 10

times the unit’s weight. Also, always use a safety cable that can hold

12 times the weight of the unit when installing the xture.

The equipment must be installed by a professional, and it must be

installed in a place where it is out of the reach of people’s grasp.

Mega 64 HEX Pak Installation

Mega 64 HEX Pak Introduction

ADJ Products, LLC - www.adj.com - Mega 64 HEX Pak User Manual Page 2

Unpacking: Thank you for purchasing the Mega 64 HEX Pak by ADJ

Products, LLC. Every Mega 64 HEX Pak has been thoroughly tested

and has been shipped in perfect operating condition. Carefully check

the shipping carton for damage that may have occurred during ship-

ping. If the carton appears to be damaged, carefully inspect your x-

ture for any damage and be sure all accessories necessary to operate

the unit has arrived intact. In the case damage has been found or parts

are missing, please contact our toll free customer support number for

further instructions. Do not return this unit to your dealer without rst

contacting customer support.

Introduction: The ADJ Mega 64 HEX Pak contains 2 Mega 64 HEX

units, that are DMX intelligent, high powered LED par fixture’s. These

xture’s can be used as a stand alone xture’s or connected in a Master/

Slave conguration. The Mega 64 HEX has five operating modes:

Sound Active mode, Auto Run mode, RGBWA+UV mode, Static Color

mode, and DMX controlled. To optimize the performance of this prod-

uct, please read these operating instructions carefully to familiarize

yourself with the basic operations of this unit. These instructions con-

tain important safety information regarding the use and maintenance

of this unit. Please keep this manual with the unit, for future reference.

Customer Support: ADJ provides a customer support line, to provide

set up help and to answer any question should you encounter prob-

lems during your set up or initial operation. You may also visit us on the

web at www.adj.com for any comments or suggestions. Service Hours

are Monday through Friday 8:00 a.m. to 4:30 p.m. Pacic Standard

Time.

Voice: (323) 582-3322

Fax: (323) 582-3108

E-mail: support@AmericanDJ.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

Mega 64 HEX Pak Safety Precautions

ADJ Products, LLC - www.adj.com - Mega 64 HEX Pak User Manual Page 4

P The ADJ Mega 64 HEX contains a automatic voltage ower Supply:

switch, which will auto sense the voltage when it is plugged into the

power source. With this switch there is no need to worry about the cor-

rect power voltage, this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal pro-

tocol used as a form of communication between intelligent fixtures

and controllers. A DMX controller sends DMX data instructions from

the controller to the fixture. DMX data is sent as serial data that trav-

els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-

minals located on all DMX fixtures (most controllers only have a DATA

“OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of

dierent manufactures to be linked together and operate from a single

controller, as long as all xtures and the controller are DMX compli-

ant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

or anywhere in the middle. When a fixture is assigned a DMX address

of 1, the DMX controller knows to send DATA assigned to address 1

to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation):

The Mega 64 HEX Pak can be controlled via DMX-512 protocol. The

Mega 64 HEX Pak has 5 DMX channel modes. The DMX address is set

on the back panel of the Mega 64 HEX Pak. Your unit and your DMX con-

troller require a standard 3-pin XLR connector for data input and data

output (Figure 1). We recommend Accu-Cable

DMX cables. If you are making your own cables,

be sure to use standard 110-120 Ohm shielded

cable (This cable may be purchased at almost all

pro lighting stores). Your cables should be made

with a male and female XLR connector on either

end of the cable. Also remember that DMX cable

must be daisy chained and cannot be split.

ADJ Products, LLC - www.adj.com - Mega 64 HEX Pak User Manual Page 5

Mega 64 HEX Pak DMX Set Up

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken. Do not attempt to remove or break o the ground

prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out`

doors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by

t he manufacturer. See page 25 for cleaning details.

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (inclu-

d ing amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.

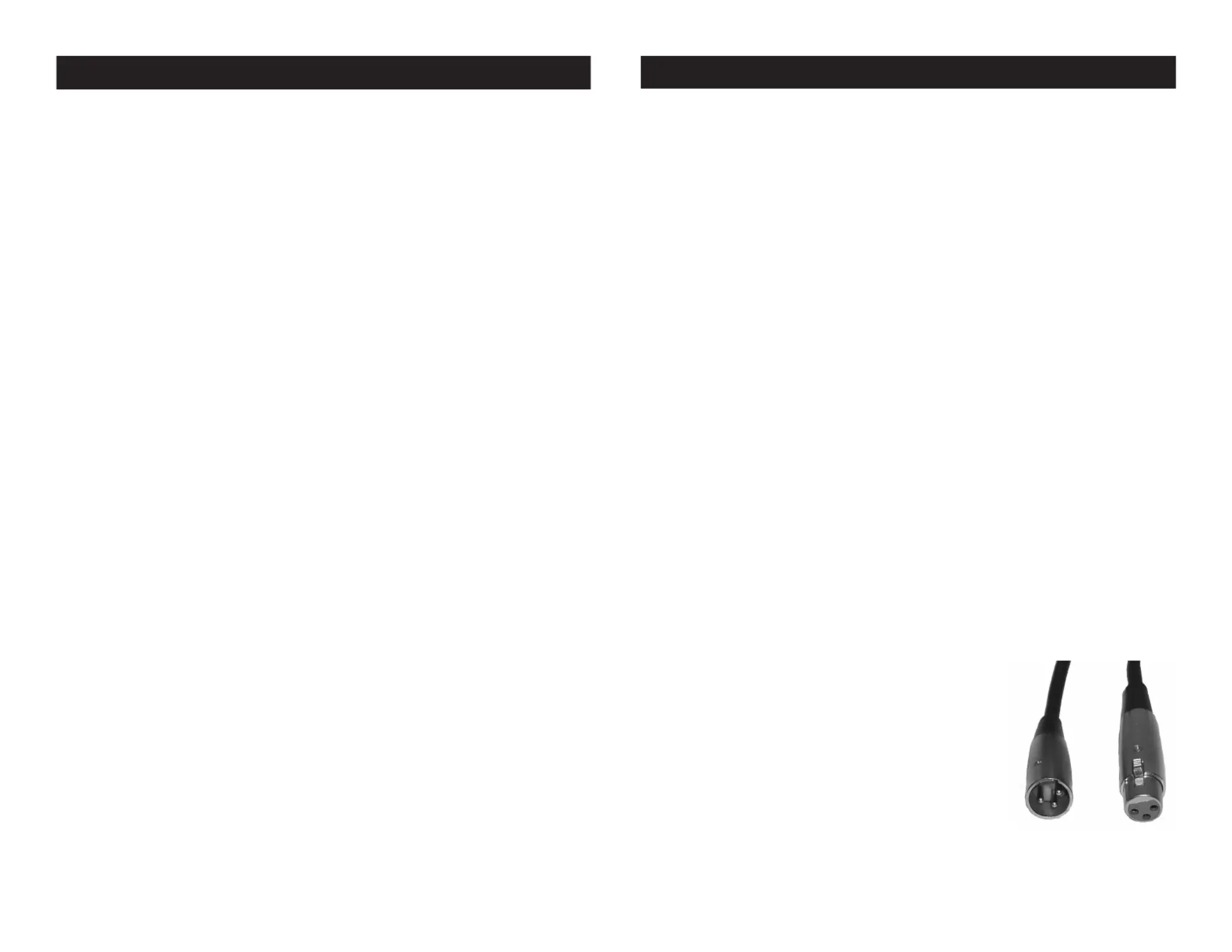

Figure 1

Product specificaties

Merk:	Adj
Categorie:	Effect machine
Model:	Mega 64 Hex Pak
Soort bediening:	Knoppen
Kleur van het product:	Zwart
Gewicht:	4500 g
Breedte:	260 mm
Diepte:	261 mm
Hoogte:	110 mm
Aantal lampen:	5 lampen
Soort lamp:	LED
Vermogen lamp:	10 W
Stroombron:	AC
Aantal:	2
Kleur licht:	Multi
Stralingshoek:	25 °
Stroomverbruik (typisch):	40 W
Type product:	Disco-spotlight
Lichtregelingsprotocollen:	DMX
Dimbereik:	0 - 100 procent
Baldiameter:	- "
Aantal DMX-kanalen:	5 kanalen
