Inno Spot pro pearl

ADJ Products, LLC - www.adj.com - Inno Spot Pro Pearl Instruction Manual Page 3

ADJ Products, LLC - www.adj.com - Inno Spot Pro Pearl Instruction Manual Page 2

• DMX-512 Protocol Compatible (14 DMX Channels)

• 8 Colors + White

• 6 Rotating, Replaceable Gobos + Spot

• 3 Operating Modes - Sound Active, Show Mode, & DMX Control

• Power Cord Daisy Chain - See page 20 for more info

• Internal Microphone

• Digital Display for Address and Function Setting

• UC3 Controller (Not Included)

• 4 Preprogrammed Shows

Inno Spot Pro Pearl Features

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures

warranty. In the unlikely event your unit may require service please

contact ADJ Products, LLC.

During operation the housing may become extremely hot. Avoid

touching the unit with bare hands while in use.

ADJ Products, LLC will not accept any liability for any resulting dam-

ages caused by the non-observance of this manual or any unauthor-

ized modication to this unit.

Inno Spot Pro Pearl Handling Precautions

Inno Spot Pro Pearl Warranty Registration

The Inno Spot Pro Pearl 2 year (730 days) limited warranty. carries a

Please fill out the enclosed warranty card to validate your purchase

and warranty. You may also register your product online at www. adj-

products.com. All returned service items whether under warranty or

not, must be freight pre-paid and accompany a return authorization

(R.A.) umber. If the unit is under warranty you must provide an copy

of your proof of purchase invoice. Please contact ADJ Products, LLC

customer support for a R.A. number.

To optimize the performance of this product, please read these

operating instructions carefully to familiarize yourself with the basic

operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please

keep this manual with the unit, for future reference.

Inno Spot Pro Pearl General Instructions

Inno Spot Pro Pearl General Information

Unpacking: Thank you for purchasing the Inno Spot Pro Pearl by

ADJ Products, LLC. Every Inno Spot Pro Pearl has been thoroughly

tested and has been shipped in perfect operating condition. Carefully

check the shipping carton for damage that may have occurred during

shipping. If the carton appears to be damaged, carefully inspect your

xture for any damage and be sure all equipment necessary to oper-

ate the unit has arrived intact. In the event damage has been found

or parts are missing, please contact our toll free customer support

number for further instructions. Please do not return this unit to your

dealer without contacting customer support rst.

Introduction: The Inno Spot Pro Pearl is a 14 channel, DMX intel-

ligent, moving head, LED fixture. The Inno Spot Pro Pearl can oper-

ate as a stand alone fixture or in a Master/Slave configuration. The

Inno Spot Pro Pearl has three operating modes; a sound active, show

mode, DMX controlled. This fixture is suitable for theaters, studios,

retail stores, and other similar locations. For best results use fog or

special effects smoke to enhance the beams projections.

Customer Support: ADJ Products, LLC provides a toll free cus-

tomer support line, to provide help and to answer any question should

you encounter problems during your set up or initial operation. You

may also visit us on the web at www.adj.com for any comments or

suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@adj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Warning! This may cause severe eye damage. Avoid looking directly

into the light source at all times!

For Your Own Personal Safety, Please Read and Understand This

Manual Completely Before You Attempt To Install Or Operate

This Unit!

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken.

• Do not attempt to remove or break o the ground prong from

the electrical cord. This prong is used to reduce the risk of electrical

shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out-

doors voids all warranties.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to cords at plugs, convenience recep-

tacles, and the point where they exit from the appliance.

• Cleaning -The fixture should be cleaned only as recommended by

the manufacturer. See page 25 for cleaning details.

• Heat -This fixture should be situated away from heat sources such

as radiators, heat registers, stoves, or other appliances (including

amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. Objects have fallen, or liquid has been spilled into the appliance.

B. The appliance has been exposed to rain or water.

C. The appliance does not appear to operate normally or exhibits

a marked change in performance.

Inno Spot Pro Pearl Safety Precautions

ADJ Products, LLC - www.adj.com - Inno Spot Pro Pearl Instruction Manual Page 5ADJ Products, LLC - www.adj.com - Inno Spot Pro Pearl Instruction Manual Page 4

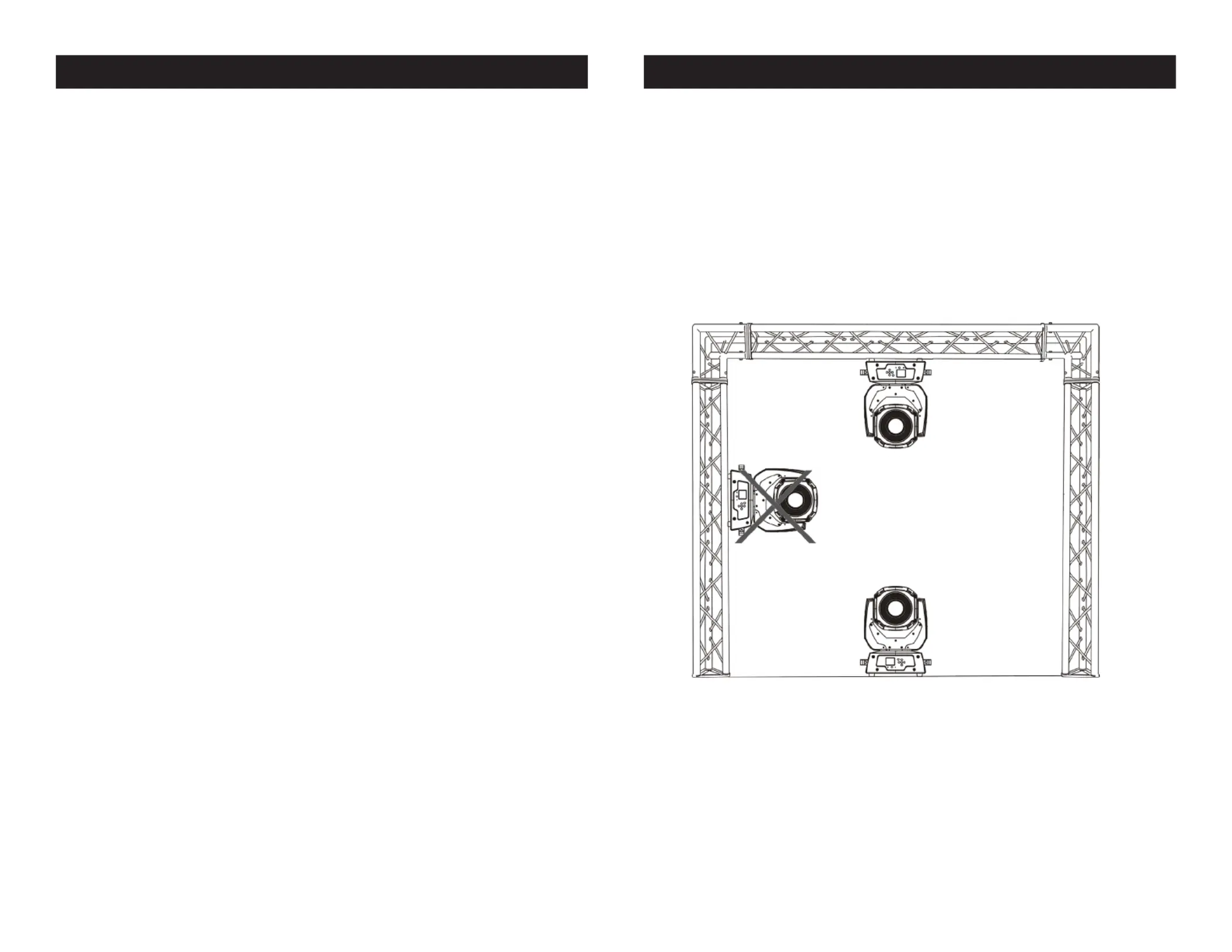

The Inno Spot Pro Pearl is fully operational in two dierent mounting

positions, hanging upside-down from a ceiling or set on a at level

surface. To avoid internal damage to the unit, never mount the unit on

its side as illustrated above. Be sure this xture is kept at least 0.5m

away from any ammable materials (decoration etc.). Always use

and install the supplied safety cable as a safety measure to prevent

accidental damage and/or injury in the event the clamp fails (see next

page). Never use the carrying handles for secondary attachment.

When installing the unit, the trussing or area of installation must be

able to hold 10 times the weight without any deformation. When

installing the unit must be secured with a secondary safety attach-

ment, e.g. and appropriate safety cable. Never stand directly below

the unit when mounting, removing, or servicing the unit.

Overhead mounting requires extensive experience, including calculat-

ing working load limits, installation material being used, and perodic

safety inspection of all installation material and unit. If you lack these

qualications, do not attempt the installation yourself.

These installaiton should be checked by a skilled person once a year.

Inno Spot Pro Pearl Installation

Product specificaties

Merk:	Adj
Categorie:	Effect machine
Model:	Inno Spot Pro Pearl
Soort bediening:	Knoppen
Kleur van het product:	Wit
Ingebouwd display:	Ja
Gewicht:	8500 g
Breedte:	167 mm
Diepte:	288 mm
Hoogte:	425 mm
Aantal lampen:	1 lampen
Soort lamp:	LED
Vermogen lamp:	80 W
Stroombron:	AC
Ingangsspanning:	100 - 240 V
Aantal:	1
Levensduur lamp:	50000 uur
Kleur licht:	Multi
Frequentie:	50 - 60 Hz
Geschikt voor gebruik binnen:	Ja
XLR in:	Ja
Type product:	Disco-spotlight
Type beeldscherm:	LED
Verlichtingsmodi:	DMX, Sound activated
Lichtregelingsprotocollen:	DMX
Dimbereik:	0 - 100 procent
DMX-ingang:	Ja
DMX-uitgang:	Ja
Baldiameter:	- "
Aantal DMX-kanalen:	14 kanalen
Gobopatronen aantal:	6
