User Instructions

FS600LED Introduction

ADJ Products, LLC - www.adj.com - FS600LED User Manual Page 2

Rev. 4/15

Unpacking: Thank you for purchasing the FS600LED by ADJ Prod-

ucts, LLC. Every FS600LED has been thoroughly tested and has been

shipped in perfect operating condition. Carefully check the shipping

carton for damage that may have occurred during shipping. If the

carton appears to be damaged, carefully inspect your xture for any

damage and be sure all accessories necessary to operate the unit has

arrived intact. In the case damage has been found or parts are miss-

ing, please contact our toll free customer support number for further

instructions. Do not return this unit to your dealer without rst contact-

ing customer support.

Introduction: The ADJ FS600LED is part of a continuing pursuit to

create high quality intelligent lighting. The FS600LED is a modern 60W

LED follow spot. It features a bright 60W LED, 8 colors, variable strobe

speed and dimming capabilities. This fixture is suitable for theaters,

studios, retail stores, and other similar locations.

Customer Support: ADJ Products, LLC provides a customer sup-

port line, to provide set up help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.adj.com for any comments or sugges-

tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.

Pacic Standard Time.

Voice: (323) 582-3322

Fax: (323) 582-3108

E-mail: support@adj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

FS600LED

FS600LED Safety Precautions

ADJ Products, LLC - www.adj.com - FS600LED User Manual Page 4ADJ Products, LLC - www.adj.com - FS600LED User Manual Page 3

• 8 Colors

• Strobing

• Adjustable Iris

• Shutters for Manual Framing

• Dimming 0-100%

• DMX-512 protocol

• 3-Pin & 5-Pin DMX Connection

• 3 DMX Channels

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken. Do not attempt to remove or break o the ground

prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out`

doors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by

t he manufacturer. See page 10 for cleaning details.

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (inclu-

d ing amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.

FS600LED Warranty Registration

FS600LED Features

To optimize the performance of this product, please read these operat-

ing instructions carefully to familiarize yourself with the basic operations

of this unit. These instructions contain important safety information

regarding the use and maintenance of this unit. Please keep this manual

with the unit, for future reference.

FS600LED General Instructions

The FS600LED 2 carries a year limited warranty. Please fill out the

enclosed warranty card to validate your purchase. All returned service

items whether under warranty or not, must be freight pre-paid and

accompany a return authorization (R.A.) number. The R.A. number

must be clearly written on the outside of the return package. A brief

description of the problem as well as the R.A. number must also be

written down on a piece of paper included in the shipping carton. If

the unit is under warranty, you must provide a copy of your proof of

purchase invoice. You may obtain a R.A. number by contacting our

customer support team on our customer support number. All pack-

ages returned to the service department not displaying a R.A. number

on the outside of the package will be returned to the shipper.

Power Supply: The ADJ FS600LED contains a automatic voltage

switch, which will auto sense the voltage when it is plugged into the

power source. With this switch there is no need to worry about the cor-

rect power voltage, this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal pro-

tocol used as a form of communication between intelligent fixtures

and controllers. A DMX controller sends DMX data instructions from

the controller to the fixture. DMX data is sent as serial data that trav-

els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-

minals located on all DMX fixtures (most controllers only have a DATA

“OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of

dierent manufactures to be linked together and operate from a single

controller, as long as all xtures and the controller are DMX compli-

ant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

or anywhere in the middle. When a fixture is assigned a DMX address

of 1, the DMX controller knows to send DATA assigned to address 1

to that unit, no matter where it is located in the DMX chain.

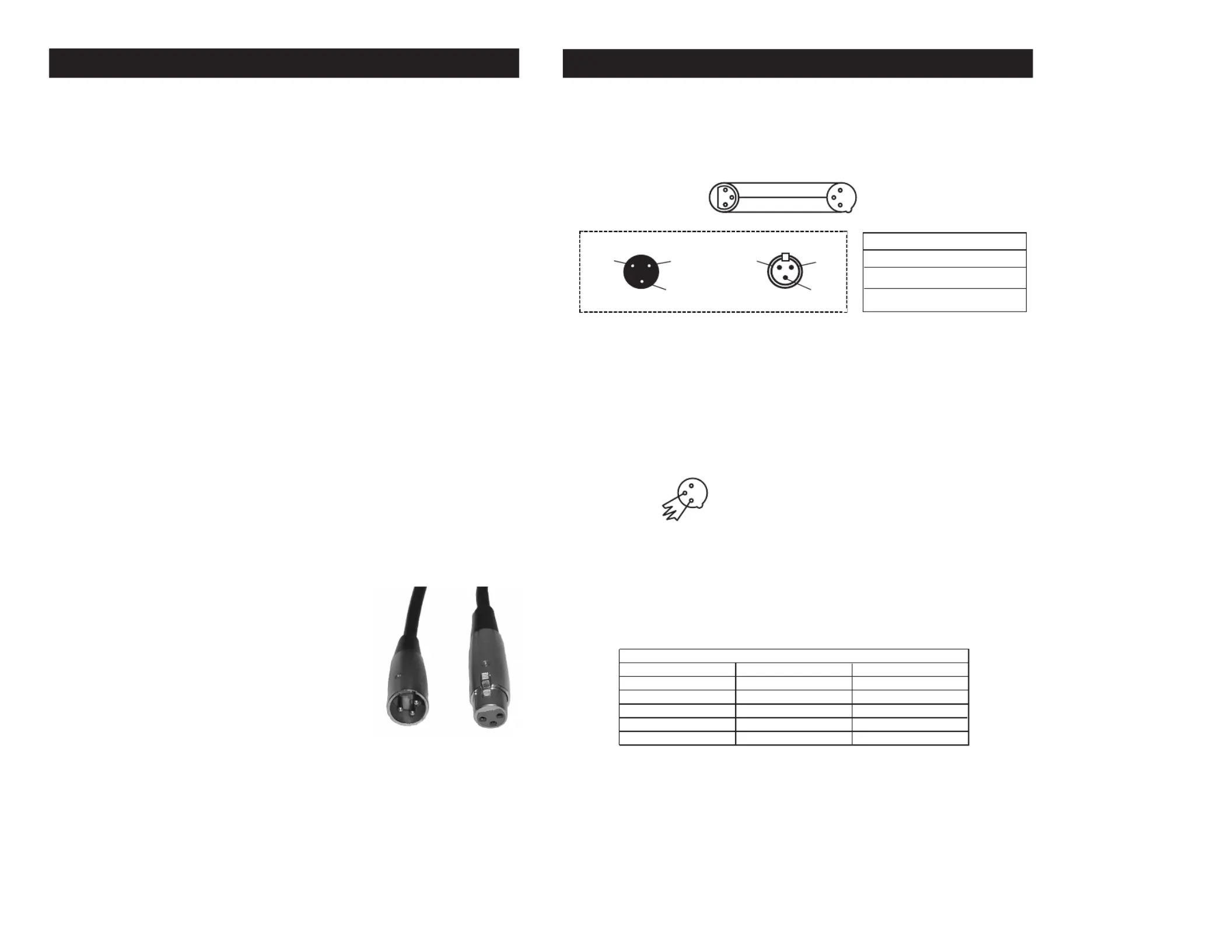

Data Cable (DMX Cable) Requirements (For DMX Operation):

The FS600LED can be controlled via DMX-512 protocol. The FS600LED

has 3 DMX channels. Your unit and your DMX controller require a stan-

dard 3-pin XLR connector for data input and data output (Figure 1). We

recommend Accu-Cable DMX cables. If you are making your own cables,

be sure to use standard 110-120 Ohm shielded

cable (This cable may be purchased at almost all

pro lighting stores). Your cables should be made

with a male and female XLR connector on either

end of the cable. Also remember that DMX cable

must be daisy chained and cannot be split.

Notice: Be sure to follow gures two and three

when making your own cables. Do not use the

ground lug on the XLR connector. Do not connect the cable’s shield

ADJ Products, LLC - www.adj.com - FS600LED User Manual Page 5

FS600LED Set Up

ADJ Products, LLC - www.adj.com - FS600LED User Manual Page 6

Figure 1

conductor to the ground lug or allow the shield conductor to come in

contact with the XLR’s outer casing. Grounding the shield could cause

a short circuit and erratic behavior.

FS600LED Set Up

DMX512 IN

3-PIN XLR

DMX +

DMX -

COMMON

DMX512 OUT

3-PIN XLR

Figure 2

Figure 3

1 Ground

XLR Male Socket

XLR Pin Conguration

3 Hot

2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Ground

Special Note: Line Termination.

When longer runs of cable are

used, you may need to use a terminator on the last unit to avoid erratic

behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-

nected between pins 2 and 3 of a male XLR connector (DATA + and

DATA -). This unit is inserted in the female XLR connector of the last

unit in your daisy chain to terminate the line. Using a cable terminator

(ADJ part number Z-DMX/T) will decrease the possibilities of erratic

behavior.

Termination educes signalr errors and

avoids signal transmission problems

and interference. It is always advisable

to connect a DMX terminal, (Resistance

120 Ohm 1/4 W) between PIN 2 (DMX-)

and PIN 3 (DMX +) of the last fixture.

Figure 4

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin DMX-

512 data cables for DATA transmission in place of 3-pin. 5-pin DMX

xtures may be implemented in a 3-pin DMX line. When inserting stan-

dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,

these adaptors are readily available at most electric stores. The chart

below details a proper cable conversion.

Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)

Pin 1

Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion
