User Instructions

American DJ®

4295 Charter Street

Los Angeles Ca. 90058

www.americandj.com

64P LED PRO Introduction

Rev. 7/07

Unpacking: Thank you for purchasing the 64P LED PRO by Ameri-

can DJ . Every 64P LED PRO has been thoroughly tested and has ®

been shipped in perfect operating condition. Carefully check the ship-

ping carton for damage that may have occurred during shipping. If the

carton appears to be damaged, carefully inspect your xture for any

damage and be sure all accessories necessary to operate the unit has

arrived intact. In the case damage has been found or parts are miss-

ing, please contact our toll free customer support number for further

instructions. Do not return this unit to your dealer without rst contact-

ing customer support.

Introduction: The 64P LED PRO is part of American DJ’s continuing

pursuit for creating high quality affordable intelligent fixtures. The 64P

LED PRO is a DMX intelligent LED Par Can. This Par Can is light weight

and compact which makes it a great piece for mobile DJ’s and clubs.

This unit can be used as a stand alone, or in a Master/Slave congura-

tion. The unit can also be controlled via DMX controller.

Customer Support: American DJ provides a toll free customer sup-®

port line, to provide set up help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.americandj.com for any comments or

suggestions. Service Hours are Monday through Friday 9:00 a.m. to

5:00 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

American DJ .®

PLEASE recycle the shipping carton when ever possible.

64P LED PRO Safety Precautions

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken. Do not attempt to remove or break off the ground

prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out`

doors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by

t he manufacturer. See page 12 for cleaning details.

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (inclu-

d ing amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.

64P LED PRO Warranty Registration

The 64P LED PRO carries a limited warranty. 3 year (1095 days)

Please fill out the enclosed warranty card to validate your purchase

and warranty. You may also register your product online at www.

americandj.com. All returned service items whether under warranty or

not, must be freight pre-paid and accompany a return authorization

(R.A.) number. If the unit is under warranty you must provide a copy

of your proof of purchase invoice. Please contact American DJ® cus-

tomer support for a R.A. number.

64P LED PRO Features

To optimize the performance of this product, please read these

operating instructions carefully to familiarize yourself with the basic

operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please

keep this manual with the unit, for future reference.

64P LED PRO General Instructions

• Multi-Colors

• Color Strobe

• Electronic Dimming 0-100%

• Built in Microphone

• DMX-512 protocol

• Uses three, six, or seven DMX Channels

• User Selectable Voltage

Caution! Never attempt to change the voltage while the fixture is

plugged in. Always disconnect the main power before attempting to

change the voltage.

1. Be sure to check the wall voltage, rst before changing the volt-

age on the unit.

2. Unscrew the phillips screw located on the top middle of the par

can.

3. After removing the screw, seperate the back half of the par can

from the front.

4. Select the voltage that matches the wall voltage.

5. Reassemble in reverse order.

64P LED PRO Voltage Selection

P Before plugging your unit in, be sure the source volt-ower Supply:

age in your area matches the required voltage for your American DJ ®

64P LED PRO. The American DJ® 64P LED PRO is available in a 120v

and 220v version. Because line voltage may vary from venue to venue,

you should be sure your unit voltages matches the wall outlet voltage

before attempting to operate you xture.

DMX-512: -DMX is short for Digital Multiplex. This is a universal pro

tocol used as a form of communication between intelligent fixtures

and controllers. A DMX controller sends DMX data instructions from

the controller to the fixture. DMX data is sent as serial data that trav-

els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-

minals located on all DMX fixtures (most controllers only have a DATA

“OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of

different manufactures to be linked together and operate from a single

controller, as long as all xtures and the controller are DMX compli-

ant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

or anywhere in the middle. When a fixture is assigned a DMX address

of 1, the DMX controller knows to send DATA assigned to address 1

to that unit, no matter where it is located in the DMX chain.

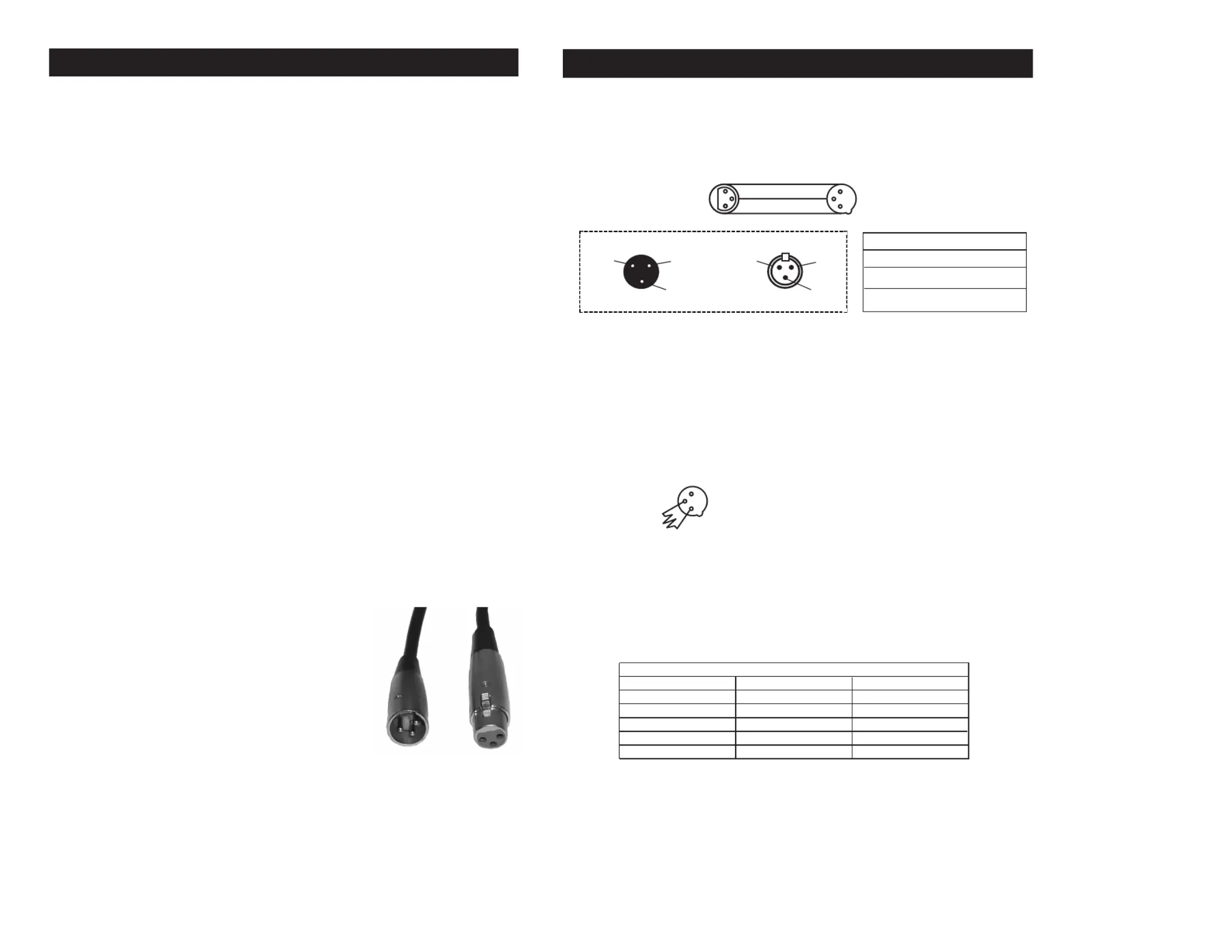

Data Cable (DMX Cable) Requirements (For DMX Operation):

The 64P LED PRO can be controlled via DMX-512 protocol. The 64P

LED PRO can be a three, six, or seven channel DMX unit. The DMX

address is set on the back panel of the 64P LED PRO. Your unit and

your DMX controller require a standard 3-pin XLR

connector for data input and data output (Figure

1). If you are making your own cables, be sure to

use standard two conductor shielded cable (This

cable may be purchased at almost all pro sound

and lighting stores). Your cables should be made

with a male and female XLR connector on either

end of the cable. Also remember that DMX cable

must be daisy chained and can not be split.

©American DJ® - www.americandj.com - 64P LED PRO Instruction Manual Page 5

64P LED PRO Set Up

Figure 1

Notice: Be sure to follow gures two and three when making your own

cables. Do not use the ground lug on the XLR connector. Do not con-

nect the cable’s shield conductor to the ground lug or allow the shield

conductor to come in contact with the XLR’s outer casing. Grounding

the shield could cause a short circuit and erratic behavior.

64P LED PRO Set Up

DMX512 IN

3-PIN XLR

DMX +

DMX -

COMMON

DMX512 OUT

3-PIN XLR

Figure 2

Figure 3

1 Ground

XLR Male Socket

XLR Pin Conguration

3 Hot

2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Ground

Special Note: Line Termination.

When longer runs of cable are

used, you may need to use a terminator on the last unit to avoid erratic

behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is con-

nected between pins 2 and 3 of a male XLR connector (DATA + and

DATA -). This unit is inserted in the female XLR connector of the last

unit in your daisy chain to terminate the line. Using a cable terminator

(ADJ part number Z-DMX/T) will decrease the possibilities of erratic

behavior.

Termination reduces signal errors and

avoids signal transmission problems

and interference. It is always advisable

to connect a DMX terminal, (Resistance

120 Ohm 1/4 W) between PIN 2 (DMX-)

and PIN 3 (DMX +) of the last fixture.

Figure 4

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin XLR

connectors for DATA transmission in place of 3-pin. 5-pin XLR xtures

may be implemented in a 3-pin XLR DMX line. When inserting stan-

dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be

used, these adaptors are readily available at most electric stores. The

chart below details a proper cable conversion.

Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)

Pin 1

Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion
