LIMITED WARRANTY

Adesso

®

provides a one year limited warranty for all of its products against defects

in materials and workmanship.

During this period, Adesso

®

will repair or replace any product which proves to be

defective. However, Adesso

®

will not warrant any product which has been subject

to improper handling, abuse, negligence, improper installation or unauthorized

repair. The warranty will not cover products installed with components not

approved by Adesso

®

and products where the sealed assembly trace has been

broken.

If you discover a defect, Adesso

®

will, at its option, repair or replace the product free

of charge, provided you return it during the warranty period with freight charges

pre-paid to Adesso

®

. Before returning any product, you must obtain a Return

Merchandise Authorization number (RMA). This RMA # must be clearly marked on

the outside of the package you are returning for warranty service. Be certain to also

include your name, shipping address (no PO Boxes), telephone number, and a

copy of the invoice showing proof of purchase in the package.

We have listed most of our FAQ’s (Frequently Asked Questions) at:

http://www.adesso.com/faqs.asp. Please visit our FAQ Service & Support pages before

you contact our E-mail or Telephone Support.

Email Support:

If our FAQ’s do not help you resolve your issues, please email [email protected]

Telephone Support:

Toll Free: (800) 795-6788

9:00AM to 5:00PM PST Monday - Friday

SUPPORT

5

1. Make sure your computer is OFF before installing the scanner.

3. Turn ON your computer and the scanner will automatically be recognized

by your computer.

Windows will detect the driver for the scanner automatically. No driver required.

2. Plug the USB cable of your scanner into the USB ports of your computer.

Power OFF

USB Port

USB Cable

Power ON

INSTALLATION

USAGE TIP

Do not hold the scanner directly over a barcode at 90˚. Scanning light bounces directly

back into the scanner from the barcode label is known as specular reflection which will

create a "dead zone" where decoding is difficult. So instead of a 90° head-on

approach, tilt the scanner up to 60° forward or backward to achieve a successful

decode. Practice a few times to find what range of angles works best.

MAINTENANCE

Cleaning the scan window is the only maintenance required. A dirty window

may affect scanning accuracy. Wipe the scanner window gently with a lens

tissue or other material suitable for cleaning optical material.

NOTE

(POS, or Inventory software is not included, however the scanner works

well with all 3rd party software, including MS WORD, Excel and Notepad)

CAUTION

To avoid damage to the eyes. Do not look directly into the light beam.

NuScan 5200TU_QSG_EN_092617

7

8

9

3

BARCODE SYMBOLOGIES:

INTRODUCTION:

REQUIREMENT:

The Adesso Nuscan 5200TU is compatible with a wide range of 1D and 2D barcode

symbologies. With COMS imager the Nuscan 5200TU is able to scan major 2D

barcodes such as PDF 417, QR Codes, Micro QR Code, and Data Matrix. As your daily

peripheral companion, your peripheral must be able to provide you with good hygiene

and cleaniness. Built with waterproof and antimicrobial substances, the Nuscan

5200TU can be cleaned periodically. Its 7 meter drop protection also adds to its

ruggedness. With all these great features, the Nuscan 5200TU is truly your ultimate

barcode scanner.

• An Available USB Port

Compatible 2D Barcodes

Compatible 1D Barcodes

The above 1D barcodes are just examples. Here is the full list of compatible 1D barcode Symbologies:

UPC-A/E, EAN13/8, Code 128, GS1-128, Code 39 (Plain&Full ASCII), Code 93, Code 11, Code 25

(ITF/Industrial/Matrix/IATA Standard), Codabar, MSI/MSI Plessey, GS1 DataBar.

QRPDF417Data Matrix

UPC-ACode 39Code 128

Micro QR

4

DESCRIPTION

CONTENTS

Scan WindowLED Indicator

Handle

Trigger

NuScan 5200TUQuick Start Guide

1

QuickGuide

English

www.adesso.com

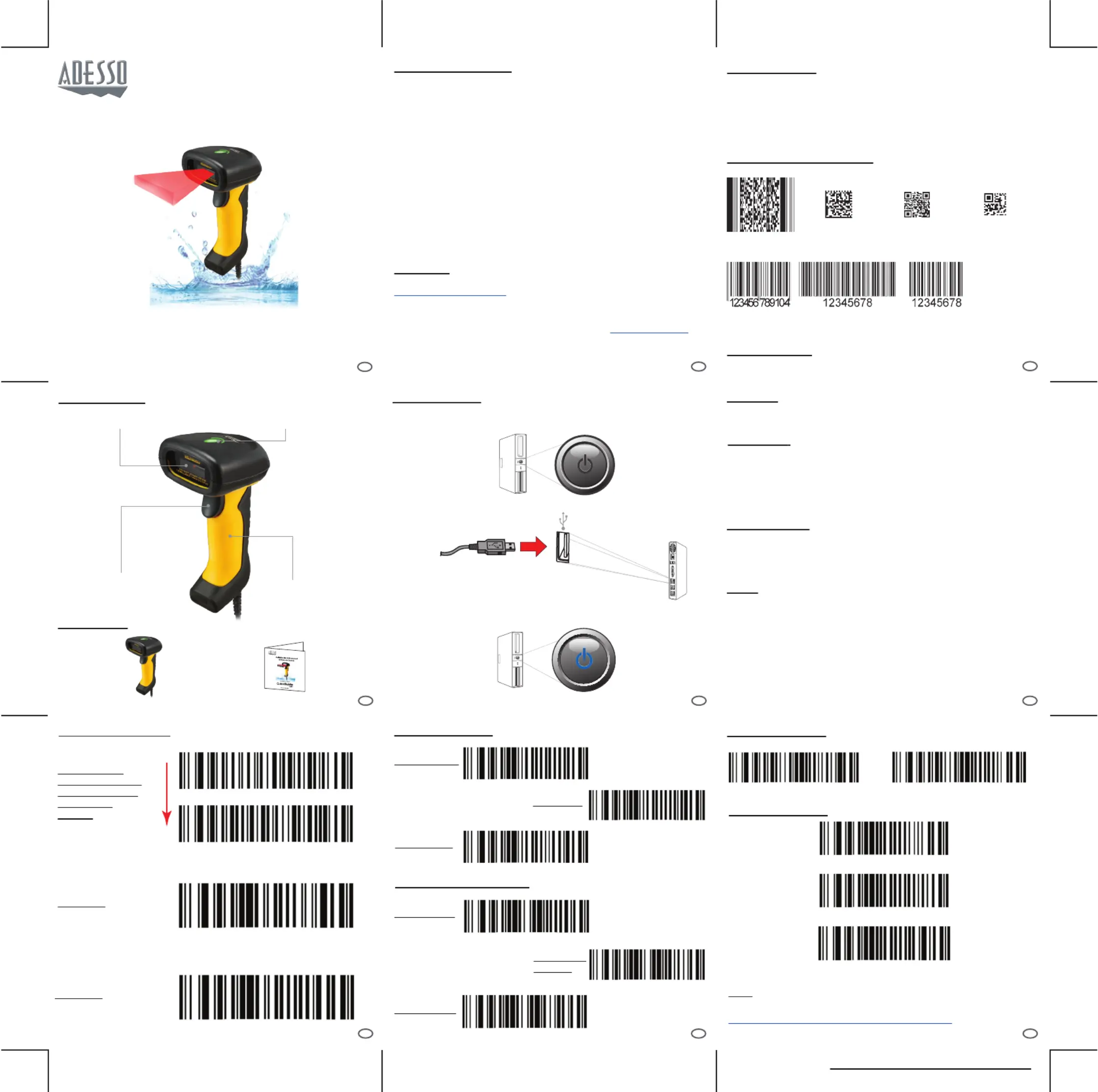

Model: NuScan 5200TU

Antimicrobial & Waterproof

2D Barcode Scanner

COMMON SETTINGS:

SCANNING MODE:

MESSAGE TERMINATOR:

Note:

If you need to make changes in the configuration of the scanner for specific applications, a

full Programming Guide can be downloaded at:

http://www.adesso.com/download/user-manual/NuScan5200TU.pdf

Beeper On:

Beeper Off:

Factory Default:

Please scan these 2

barcodes in vertical

order. (Top to

Bottom).

Manual Trigger:

Auto Sensing:

Continuous:

No Terminator:

Enter/Return

Carriage:

Horizontal Tab:

White LED Setting:

Red Aimer Setting:

ONOFF

Normal Mode (only lights up when triggered)

OFF

Always On (serves as a guideline)
