Operating System: Windows® 11/10 / 8 / 7,

MacOS® 10.3 and above,Android , Chrome

Connectivity Interface: An Available USB-C port

1x AUH-4060 1x Quick Start Guide 1x 100 W PD Adapter

REQUIREMENTS

INTRODUCTION

GENERAL INFORMATION

GETTING STARTED

1. Insert power cord into the power adapter

2. Plug in the power cord into an outlet.

3. Insert the USB-C cable into the PD port of the docking station.

4. Plug in the USB-C connector into a USB-C port on your device.

USB 3.0 is also known as USB 3.2 Gen 1. This connectivity standard oers speeds up to

5Gbps.

About USB 3.0 and USB 3.2 Gen 1

Not all USB-C ports support the full functionality of the USB Type-C standard. Some

ports might only provide data transfers, and might not support video or USB Power

Delivery 3.0. For this adapter to operate properly, check to ensure that your host

laptop supports DP Alt Mode and USB Power Delivery 3.0.

If your laptop supports DP Alt Mode, but not USB Power Delivery, then the multiport

docking station will be powered by your laptop’s host USB-C port.

Thunderbolt™ 3 technology also uses the USB-C connector, so you can connect the

adapter to a Thunderbolt 3 port. The adapter will connect to the Thunderbolt 3 port

at the USB speed of 5Gbps.

USB Power Delivery 3.0 is a specication that allows power (up to 100 watts) to be

sent over a USB-C or Thunderbolt™ 3 cable that supports the specication. The

adapter supports USB Power Delivery 3.0, delivering up to 100 watts of power

through the USB-C or Thunderbolt 3 port on your laptop.

DisplayPort Alternative Mode is a specication that allows a video signal to transfer

over USB-C.

About USB-C

1

2

3

4

Adesso

®

provides a one year limited warranty for all of its products against defects in materials

and workmanship.

During this period, Adesso

®

will repair or replace any product which proves to be defective.

However, Adesso

®

will not warrant any product which has been subject to improper handling,

abuse, negligence, improper installation or unauthorized repair. The warranty will not cover

products installed with components not approved by Adesso

®

and products where the sealed

assembly trace has been broken.

If you discover a defect, Adesso

®

will, at its option, repair or replace the product free of charge,

provided you return it during the warranty period with freight charges pre-paid to Adesso

®

.

Before returning any product, you must obtain a Return Merchandise Authorization number

(RMA). This RMA # must be clearly marked on the outside of the package you are returning

for warranty service. Be certain to also include your name, shipping address (no PO Boxes),

telephone number, and a copy of the invoice showing proof of purchase in the package.

LIMITED WARRANTY

CONTENTS

OVERVIEW

The Adesso 12-IN-1 USB-C Multiport docking station is simple to use, just plug and

play! Expand your laptop and TYPE-C device's connection port with this USB Type-C

multiport docking station. It has dual Display ports and 1HDMI port for transmitting

4K content to your external monitor and can also charge other devices. This USB

Type-C multi-port docking station has 4 USB 3.2 Gen 1 superspeed ports, SD and TF

card reader slots, 1 RJ45 Port, and 1 3.5mm Audio Jack.

SPECIFICATIONS

5

6

FAQ’s http://www.adesso.com/faqs

Email Support:[email protected]

Telephone Support:

Toll Free: (800) 795-6788

9:00AM to 5:00PM PST Monday - Friday

SUPPORT

AUH-4060-English-V1.0_070722

Connection:

Current Input:

DP Max Refresh Rate:

HDMI Max Refresh Rate:

Dimension:

Weight:

Cable Length:

1x Type-C port ,

3x USB 3.2-A (5 Gbps),

1x USB 3.2-C (5 Gbps),

1x PD (Up to 100 W),

2x DP(8K/30Hz, 4K/30Hz)

1x HDMI(4K/60Hz, 4K/30Hz)

1x TF, 1x SD Cards (480 Mbps),

1x RJ45 (10/100/1000 Mbps)

1x 3.5mm Audio Jack

USB Type-C,PD 3.0 PD 5V-20V, Max 5A, up to 100 W

8K/30HZ

4K/60Hz

6.2” x 3.1” x 1.2” (157 x 78x 30mm)

7.6 oz (225g)

93.4 Inch (100 cm)

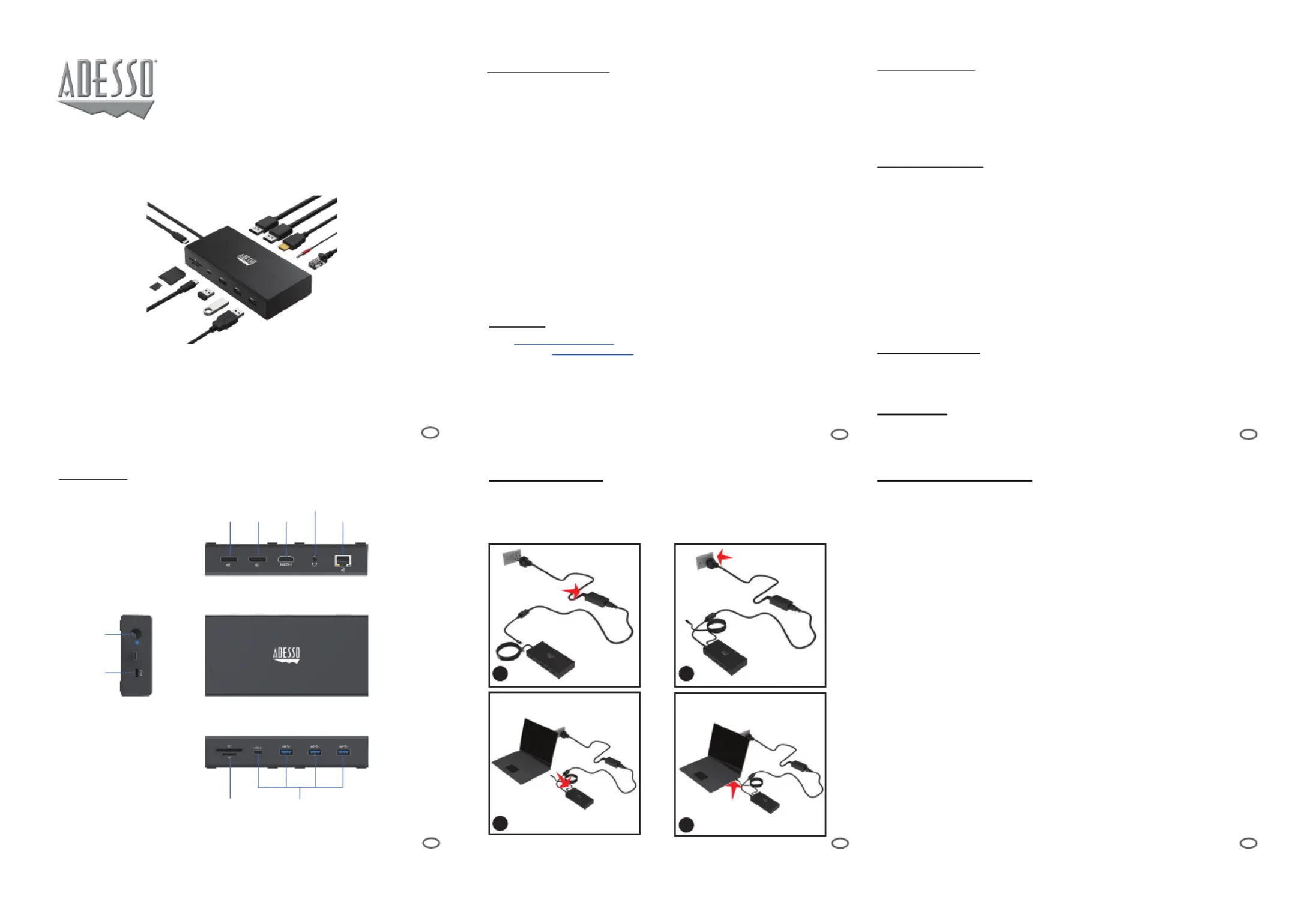

QuickGuide

English

www.adesso.com

12-IN-1 USB-C Multiport Docking Station

Supports Dual DP, HDMI Port, USB 3.2, PD, RJ45,

TF, SD Cards & Thunderbolt 3 Compatible

Model: AUH-4060

HDMI

DP

DPRJ45

SD/TF

Card Reader

USB 3.2 Gen 1

Audio Jack

Switch

PD 3.0

12

3

4
