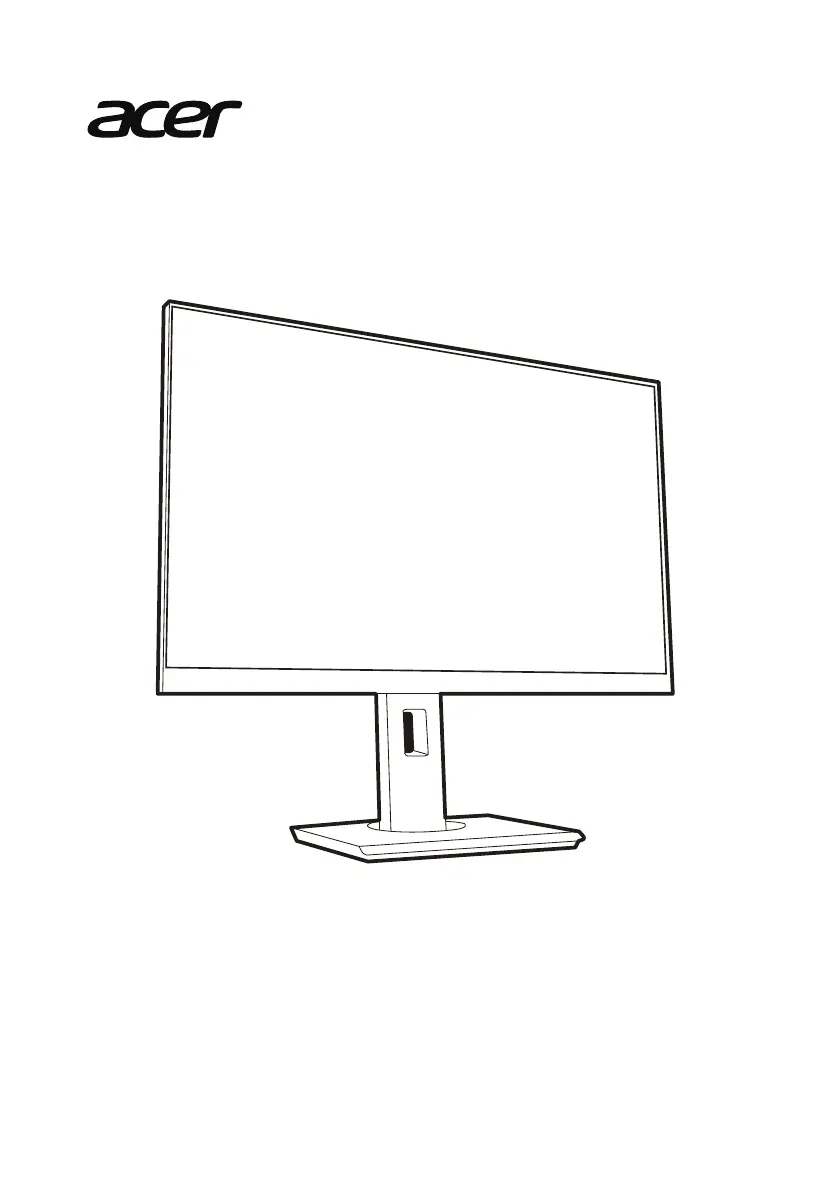

USER GUIDE

LCD Monitor B7 series-B247W

English

Acer LCD Monitor Quick Start Guide (QSG)

Important safety instructions

Please read the following instructions carefully.

1. To clean the LCD monitor screen: Be sure that your monitor is electrically rated to operate with the AC power available in your

location.

• Turn off the LCD monitor and unplug the power cord.

• Spray a non-solvent cleaning solution onto a rag and clean the screen gently.

• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.

• PLEASE DO NOT USE ANY AMMONIA OR ALCOHOL-BASED CLEANERS ON THE LCD DISPLAY SCREEN OR CASE.

• Acer will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

2. Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage it.

3. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.

4. Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of any

nature.

5. Store the LCD monitor in a room with a temperature of -20° to 60° C (-4° to 140° F). Storing the LCD monitor outside this range

may result in permanent damage.

6. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:

• Monitor-to-PC signal cable is frayed or damaged.

• Liquid spills onto the LCD monitor or the monitor is exposed to rain.

• The LCD monitor or case is damaged.

Attaching the monitor to the base

1. Remove the monitor from the packaging.

2. Attach the foot stand to the base. (for selected models)

3. Turn clockwise to lock. Ensure that the base is locked onto the stand. (for selected models)

4. Secure the base to the stand by turning the screw using the integrated tab or a suitable coin. (for selected models)

Connecting Your Monitor to a Computer

1. Turn off your monitor and unplug your computer’s power cord.

2. 2-1 Connect Video Cable

a. Make sure both the monitor and computer are powered-OFF.

b. Connect the VGA video cable to the computer.

2-2 Connect HDMI Cable (Only HDMI-input model)

a. Make sure both the monitor and computer are powered-OFF.

b. Connect one end of the HDMI cable to the back of the monitor and

connect the other end to the computer's port.

2-3 Connect DP Cable (Only DP-input model) (Optional)

a. Make sure both the monitor and computer are powered-OFF.

b. Connect the DP cable to the computer.

3. Connect the Audio Cable. (Only Audio-Input Model) (Optional)

4. Insert the monitor power cable into the power port at the back of the

monitor.

5. Plug the power cords of your computer and your monitor into a nearby

electrical outlet.

6. Select Power-off USB charge ON/OFF to enable/disable Power-off USB charge

function. (Optional)

External Controls

No. Item Description

Power button/

indicator

Turns the monitor on/off. Blue

indicates power on. Amber indicates

standby/power saving mode.

2 Hotkey 1, 2 buttons

Press to activate user defined hotkey

function.

3 Input button Press to toggle input sources.

4 Navi/OK button

Press to activate the OSD menu, then

use it as directional key to highlight

the desired function. Press it again to

enter a selection.

HDMI

VGA

POWER

AC SWITCH

AUDIO INVGA IN

HDMI DP

optional

Product specificaties

Merk:	Acer
Categorie:	Monitor
Model:	B247W
Kleur van het product:	Zwart
Gewicht verpakking:	8400 g
Aan/uitschakelaar:	Ja
In hoogte verstelbaar:	Ja
Beeldscherm:	LED
Beeldschermdiagonaal:	24 "
Resolutie:	1920 x 1200 Pixels
Touchscreen:	Nee
Pixeldichtheid:	94.3 ppi
Oorspronkelijke beeldverhouding:	16:10
Kijkhoek, horizontaal:	178 °
Kijkhoek, verticaal:	178 °
Meegeleverde kabels:	AC, DisplayPort, USB, VGA
Beeldscherm vorm:	Flat
Typische contrastverhouding:	1000:1
Snelstartgids:	Ja
Frequentiebereik horizontaal:	30 - 85 kHz
Frequentiebereik verticaal:	56 - 76 Hz
VGA (D-Sub)poort(en):	1
Aantal HDMI-poorten:	1
DVI-poort:	Nee
Bevestigingsmogelijkheid voor kabelslot:	Nee
Ingebouwde luidsprekers:	Ja
Gemiddeld vermogen:	2 W
Stroomverbruik (in standby):	0.5 W
Aantal luidsprekers:	2
Beeldscherm, aantal kleuren:	16.78 miljoen kleuren
Stroomverbruik (indien uit):	0.3 W
Maximale refresh snelheid:	60 Hz
HD type:	WUXGA
3D:	Nee
Audio-uitgang:	Ja
Display technologie:	LED
Responstijd:	4 ms
Ondersteunde grafische resoluties:	1920 x 1200 (WUXGA)
VESA-montage:	Ja
Paneelmontage-interface:	100 x 100 mm
Duurzaamheidscertificaten:	ENERGY STAR
Helderheid (typisch):	300 cd/m²
Contrast ratio (dynamisch):	100000000:1
Geïntegreerde TV Tuner:	Nee
Ingebouwde camera:	Nee
Aantal DisplayPorts:	1
Energieverbruik (HDR) per 1000 uur:	- kWu
Energie-efficiëntieklasse (SDR):	G
Energieverbruik (SDR) per 1000 uur:	28 kWu
Breedte apparaat (met standaard):	533 mm
Diepte apparaat (met standaard):	207 mm
Hoogte apparaat (met standaard):	510 mm
Gewicht (met standaard):	6200 g
AMD FreeSync:	Nee
NVIDIA G-SYNC:	Nee
On Screen Display (OSD):	Ja
Thin client geïnstalleerd:	Nee
Temperatuur bij opslag:	-20 - 60 °C
Soort paneel:	IPS
Draaibaar:	Ja
Horizontaal draaibaar:	-45 - 45 °
Ingebouwde USB-hub:	Ja
Mean time between failures (MTBF):	30000 uur
Scharnier:	Ja
Pivot hoek:	-90 - 90 °
Stroomverbruik (typisch):	28.3 W
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	20 - 80 procent
Bereik kantelhoek:	-5 - 25 °
Energie-efficiëntieschaal:	A tot G
kantel aanpassingen:	Ja
Europees Productregister voor Energielabeling (EPREL) code:	372800
