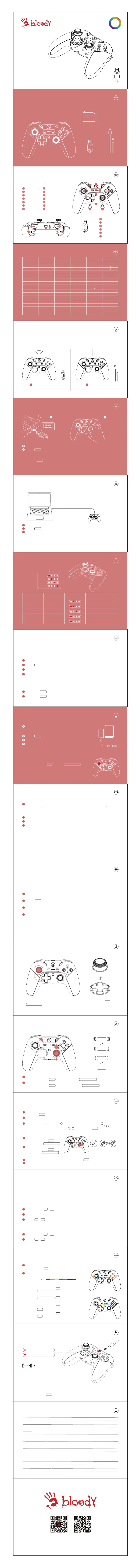

Note: You can only choose one mode to connect with the Controller.

Can not operate different modes at the same time.

WIDE COMPATIBILITY

QUICK

START

GUIDE

GPW70

2.4G Wireless RGB Gaming Controller

Gaming Controller

WHAT'S IN THE BOX

User Manual

2.4G USB

Receiver

KNOW YOUR PRODUCT

USB Receiver

LED

BACK

START

TURBO

CLEAR

Home Button

Turbo Button

Clear Button

Back Button

Start Button

LED Button

LED Indicator

1

2.4GHz Wireless

1

USB Wired

2

1

23

45

6

14

8

9

10

11

7

2

3

4

5

6

7

8

9

10

11

12

13

14

3D Left Joystick / LSB

D-Pad

3D Right Joystick / RSB

ABXY Button

Left Macro Button (ML)

Right Macro Button (MR)

AUX 3.5mm Port

15

16

17

18

19

20

Right Button (RB)

Left Button (LB)

Right Trigger (RT)

Left Trigger (LT)

USB Type-C Port

Reset Button

ML

MR

12

15

1718

16

19

20

13

BUTTON FUNCTIONS

Switch

B

A

Y

X

L

R

ZL

ZR

TL

TR

Home

Turbo

Clear

X/Y

Z/RZ

Buttons

Function

AndroidPC/D-InputPC/X-InputPS3

AA31

BB22

X

X43

YY14

LBL155L1

RBR166R1

LTL27Z AxisL2

RTR28Z AxisR2

BackSelect97Select

StartStart108Start

LSBTL119L3

RSBTR1210R3

HomeMode13HomePS

TurboTurboTurboTurboTurbo

ClearClearClearClearClear

POVD-PadX/YPOVPOVX/Y

LEDLEDLEDLEDLEDLED

L_JoystickX/YX/YX/YX/Y

R_JoystickZZX/YZ/RZ

CONNECTING 2.4G DEVICE

Power On:

USB Port

Plug in the 2.4G USB Receiver.

Press the Home Button to turn on the Controller.

The LED indicators light up once the Controller is turned on.

Power Off:

Long press the Reset Button for 3s to turn off the Controller.

USB Type-C

Charging Cable

LED

BACK

START

TURBO

CLEAR

1

2

3

CONNECTING WIRED DEVICE

Plug the cable to the Controller and Computer.

Press the Home Button to enter Wired Mode, otherwise, it will be in charging mode.

The LED indicator lights up once the Controller is connected.

Note:

The Controller will prioritize connecting to 2.4G mode by default. If you plug in the cable and

2.4G Receiver at the same time, the wired function will be just in charging mode.

Note:

You can plug in the cable to charge the Controller if low battery during game playing.

1

2

1

2

3

4

Plug the 2.4G Receiver to the PC.

Press the Home Button to turn on the Controller.

The LED indicators flash when pairing.

The LED-2 lights up once the Controller is connected.

PC/X-Input Mode

Mode Exchange (PC/X-Input to PC/D-Input)

USB Type-C

USB Plug

RGB

CONNECT WITH PC PLATFORM

Reset Button

Long press the Home Button for 3s to turn into PC/D-Input. The LED-1 & LED-2 light up.

Long press the Home Button for 3s again to back to PC/X-Input. The LED-2 lights up.

LED INDICATOR

CONNECT WITH ANDROID PLATFORM

Plug the 2.4G Receiver to the Android Device.

(Smart TV, Set-Tob Box, Smart Phone, Tablet based on Android v5.0 and above)

Note: An OTG adaptor will be needed for smartphones and tablets.

Press the Home Button to turn on the Controller.

The LED indicators flash when pairing.

The LED-3 lights up once the Controller is connected.

Change to Mouse Mode

Under this mode, you can change the Controller to Mouse Mode.

Long press and hold the Start Button and 3D Left Joystick Button

simultaneously for 5s.

The LED-3 & LED-4 light up. Repeat the same steps to return to

the default function.



Press Home Button for 5s

under X-input Mode

Plug and PlayPC/X-inputLED-2

LED-1 + LED-2

LED-3

LED-1

LED-1

PC/D-input

Android/HID

PS3

Switch

Plug and Play

Plug and Play

Plug and Play

LED-1:

LED-2:

LED-3:

LED-4:

CUSTOMIZE ML/MR MACRO BUTTONS

1

2

RGB Light On/Off

Press and hold the LED Button for 5s to turn on / off the RGB Backlit.

Change Lighting Effect

Lighting Effects: RGB Flowing, Solid, Breathing, Cycle.

Lighting Colors:

Zone-1 Lighting Location:

Zone-1*

Lighting Location

Zone-2*

Lighting Location

* The light effect is for reference only, should be subject to the actual product.

RGB LIGHTING EFFECT SETTING

CHARGING/LOW BATTERY INDICATOR

SPECIFICATIONS

CONNECT WITH NINTENDO SWITCH

You can exchange the D-Pad function to the 3D Left Joystick function by pressing the Start Button

and 3D Left Joystick Button simultaneously.

Repeat the same steps to return to the default function.

CONNECT WITH PLAYSTATION 3

1

2

3

4

Plug the 2.4G Receiver to your PS3.

Press the Home Button to turn on the Controller.

The LED indicators flash when pairing.

The LED-1 lights up once the Controller is connected.

3D JOYSTICK AND D-PAD SWITCHING

ADJUST VIBRATION INTENSITY

TURBO & CLEAR FUNCTION SETTING

1

2

3

4

Plug the 2.4G Receiver into your Nintendo Switch console.

The LED indicators flash when pairing.

The LED-1 lights up once the Controller is connected.

Audio Function

Under this mode, you can connect a headset or a microphone to the AUX 3.5mm Audio Port.

No Sensor Function and Capture Button in the Switch platform.

In the Switch platform, Button "A" & "B" Exchanged, Button "X" & "Y" Exchanged,

Button "Back" change to "-", Button "Start" change to "+".

Note:

The "Pro Controller Wired Communication" must be turned on before

connecting the Controller and the Dock with the USB receiver.

Note:

Turn on the "Pro Controller Wired Communication" in the console.

System Settings Controllers and Sensors Pro Controller Wired Communication On

LED

BACK

S

TART

TURBO

CLEAR

LED

BACK

START

TUR

BO

CLEAR

100%

70%

30%

Off

1

2

Increase the Vibration Intensity:

Long press and hold the Turbo Button then slide up the 3D Right Joystick .

Decrease the Vibration Intensity:

Long press and hold the Turbo Button then slide down the 3D Right Joystick .

LED

BACK

START

TURBO

CLEAR

LED

BACK

START

TURBO

CLEAR

The macro setting can be programmed to the function buttons and joysticks.

Includes: A/B/X/Y/LB/RB/LT/RT/D-Pad/3D Joysticks/Joystick Buttons

1

2

3

Press and hold the ML or MR Button for 5s, the LED-2 & LED-3 flash slowly.

Press the function buttons that need to be recorded as macros.

Press the ML or MR Button again to save the setting.

Set the Macro Function:

1

2

Press and hold the ML or MR Button for 5s, the LED-2 & LED-3 flash slowly.

Press the ML or MR Button again to clear the setting.

Clear the Macro Setting:

Press and hold the LED Button then press the

D-Pad Up / Down Button to adjust lighting effects.

Press and hold the LED Button then press the

D-Pad Left / Right Button to adjust lighting colors.

Change Effects:

Change Colors:

Zone-2 Lighting Location:

Press and hold the LED Button then press the

Start Button to adjust lighting effects.

Press and hold the LED Button then press the

Back Button to adjust lighting colors.

Change Effects:

Change Colors:

2.5H Charing Time

Flashing red light indicates when the battery is below 10%.

2.4G Wireless + USB Wired

Up to 10 m

USB Receiver

PC, Switch, Android, PS3

2-Zone RGB

Linear Hall Magnetic Induction Trigger

ML, MR

3.5 mm

600mAh Lithium Battery

2.5 Hours

Up to 13 Hrs (Vibration & Light Off)

Up to 7 Hrs (Vibration & Light On)

100 cm

156 x 106 x 59 mm

265 g

Sports Black, Sports White

Connection:

Operating Range:

Receiver:

System Platform:

Backlit:

Trigger Type:

Macro Button:

AUX Port:

Battery Type:

Charging Time:

Playtime:

Type-C Charging Cable:

Size:

Weight:

Color:

USB Type-C

Sleep Mode:

The LED indicator will turn off and the Controller goes to sleep after 5 minutes of no usage.

Note: You can press the Home Button to wake up the Controller.

Playtime:

Up to 13 Hrs (Vibration & Light Off)

Up to 7 Hrs (Vibration & Light On)

Flash Red Light: Charging

Solid Red: Fully Charged

Scan for E-Manualwww.Bloody.com

D-Pad

3D Left Joystick

Enable Turbo Setting:

1

2

1

2

3

Clear Turbo Setting:

Press one or more buttons with Turbo Function, then press the Clear Button to clear the Turbo Setting.

To clear all the previously set Turbo Settings, you need to clear them one by one.

Repeat the steps until all keys are cleared.

Press and hold on to one or more buttons from A/B/X/Y/LB/RB/LT/RT,

then press the Turbo Button to save the turbo function.

You may only set one of the combination buttons at the time,

to save multiple Turbo settings, please repeat step ①.

For example: If you like to set button A to be Turbo function, first press and hold A

and then press the Turbo Button to save it. If you like to do the same to combination Y + B ,

then you need to first press and hold buttons Y + B and then press the Turbo Button.

Repeat this for all the buttons you like to set.

LED

BACK

START

T

U

R

BO

CLEAR

3-Level Turbo Speed

Adjust Turbo Speed:

1

2

Increase the Turbo Speed:

Decrease the Turbo Speed:

Long press and hold the Turbo Button

then slide right the 3D Right Joystick .

Long press and hold the Turbo Button

then slide left the 3D Right Joystick .

OTG Adaptor*

* The OTG Adaptor is for demo only, not included in the package.
