MODEL:KG250

CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the

fuse at fuse box.

Step 1: Remove the screws and the rubber washer from the switch box to allow easy wiring. (Fig.1)

Step 2: Remove and discard the center plug from the switch box plate. Attach the light kit to the switch box

plate by feeding the wires and threading the light kit the through the hole of the switch box plate, secure it to the

switch box plate using the nut and lock washer. Be sure it is tight enough to prevent the light kit from vibrating

loose. (Fig.1)

Step 3: Make the wire connections as follows and secure with the wire nuts provided:

- Connect white wire from the fan to white wire from the light kit.

- Connect blue wire from the fan to black wire from the light kit.

Setp 4: While holding the switch box plate, slide the switch box plate up against the switch box and align the

screw holes. Secure the switch box plate to the switch box using the screws and rubber washer removed

earlier. (Fig.2)

CAUTION:Make sure that the wires are not pinched between the switch cup and the switch cup plate.

Setp 5: Install 2 x 13W E27 CFL (Included). DO NOT EXCEED MAXIMUM WATTAGE RATING.

Setp 6: Remove the rubber washer, metal washer, metal nut, metal cap and finial from the light kit. Place glass

shade over the light kit stem, secure with the rubber washer, metal washer, metal nut, metal cap and finial. Do

not overtighten. (Fig.3)

Read and save these instructions

Screw

Screw

Rubber washer

Metal washer

Metal nut

Rubber washer

Rubber washer

Switch box plate

Switch box

Lock washer

Metal nut

Metal cup

Glass shade

13W E27 CFL

Finial

Light kit

Light kit

Center plug

Light kit

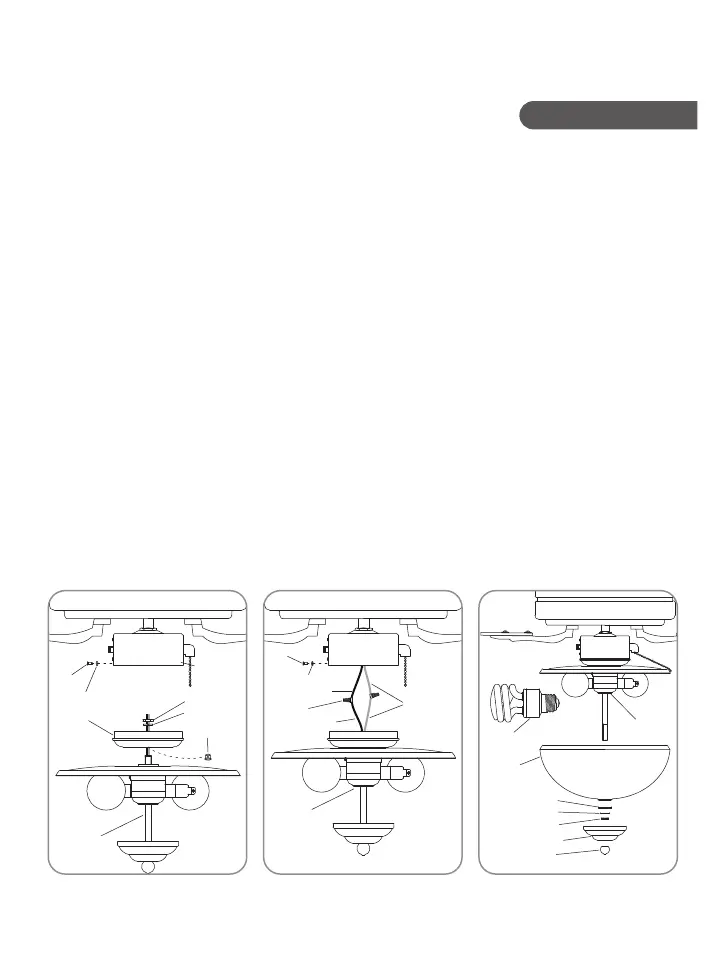

FIG. 1FIG. 2FIG. 3

Black wire

Blue wire

White wire

Wire nut
