2. Power terminal connections
Use terminal lugs, rigid or exible busbars.
Step 1
Cabinet /
Back Plate
Installation
Step 2
Connecting the
power section
Step 3
COMMAND /
CONTROL
terminal
connections
Step 4
Power SUPPLY
and
controller
terminal
connections
Step 5
Check
Step 6
Programming
Step 7A
AUT Mode
(Automatic
Control)
Step 7B
AUT Mode
(Remote
Control)
Step 7C
Emergency
Manual
Operation
Step 7D
Padlocking
5. Check
In manual mode,
check the wiring.
If OK power up
the product
LED Green =
“Power”: ON
LED Red =
“Manuel/Defaut”: ON
125A160A200A250A315A400A500A630A
Minimum Cu
cable section
at Ith
(mm
2
)3550951201852 x 952 x 120
Minimum Cu
busbar section
at Ith
(mm
2
)-2x30x52x40x5
Maximum Cu
cable section
(mm
2
)50951201502402 x 1852 x 300
Maximum Cu
busbar width
(mm)253250
Type of screw
M8M10M12
Recommended
tightening
torque
(N.m)8,32040
Maximum
tightening
torque
(N.m)132645
Preliminary operations
Check the following upon delivery and after removal
of the packaging:
• Packaging and contents are in good condition.
• The product reference corresponds to the order.
• Contents should include:
- 1 x motorised changeover switch
- 1 x emergency handle and xing clip
- 1 x quick start instruction sheet.
Accessories
• Bridging bars and connection kits.
• Terminal shrouds.
• Terminal shield.
• Voltage sensing kit.
• Sealable cover.
Installation and commissioning
Clip
for storage
of the
emergency
handle
z
Motorised changeover switch
125A - 630A
1
Preferred source
2
Alternate source
& Position 0 order
éPosition 1 order
" Position 2 order
' Zero position priority order
( Remote Control Enable (Priority over Auto)
§ Product Available output (Motor)
è Position II aux contact
! Position I aux contact
ç Position 0 aux contact
a O/P to HZI910 remote display
z Product Available output (ATS)
e I/P Inhibition of the ATS controls
r I/P Manual retransfer
tS2 Stability Time Bypass: 2AT
yPriority to TEST ON LOAD: TON
uTEST OFF LOAD Signal: TOF
iTEST ON LOAD Signal: TON
oNot used
pContact “Start/Stop Genset”: if S1
is not available the NC contact le
contact (71-72) is close
qContact “Start/Stop Genset”: if S1
is not available the NO contact le
contact (71-74) is open
sVoltage Sensing Inputs
dPower Supply Inputs
fOption module slots 1 to 4
Example: control wiring for a 400VAC application having a 3 phase and neutral supply
4. Power supply, sensing and control wiring
Use cables with 1,5 to 2,5 mm
2
section.Screw M3Tightening torque: min.: 0.5 Nm - max.: 0.6 Nm
Recommanded to use
the voltage sensing kit
ATS Power Supply input II
Power Supply II - L
Power Supply II - N
208-277 VAC ±20%:
50/60 Hz
ATS Voltage Sensing input
Source supply II
S II - Phase 1
S II - Phase 2
S II - Phase 3
600 VAC (ph-ph) max
S II - Neutral
332 VAC (ph-n) max
ATS Module Control Inputs
(xed)
Contact
Genset Start/Stop
(product available)
Signal
ATS Power Supply input I
Power Supply II - L
Power Supply II - N
208-277 VAC ±20%:
50/60 Hz
ATS Voltage Sensing input
Source supply II
S I - Phase 1
S I - Phase 2
S I - Phase 3
600 VAC (ph-ph) max
S I - Neutral
332 VAC (ph-n) max
ATS Module Control Inputs
(xed)
ATS Module Output Contact
(product available)
Remote interface
RJ45 - to HZI910
3. CONTROL/COMMAND terminals
Ensure that the product is in Manual Mode.
2
104103
31231331431531631763A64A24140413
RJ
102101
105106
414413415416417
64B63B
72
201
71
202
205206204203
210209208207
74
1
F1
F2
L1L2L3N
L1L2L3N
HZI910
HIC4xxG

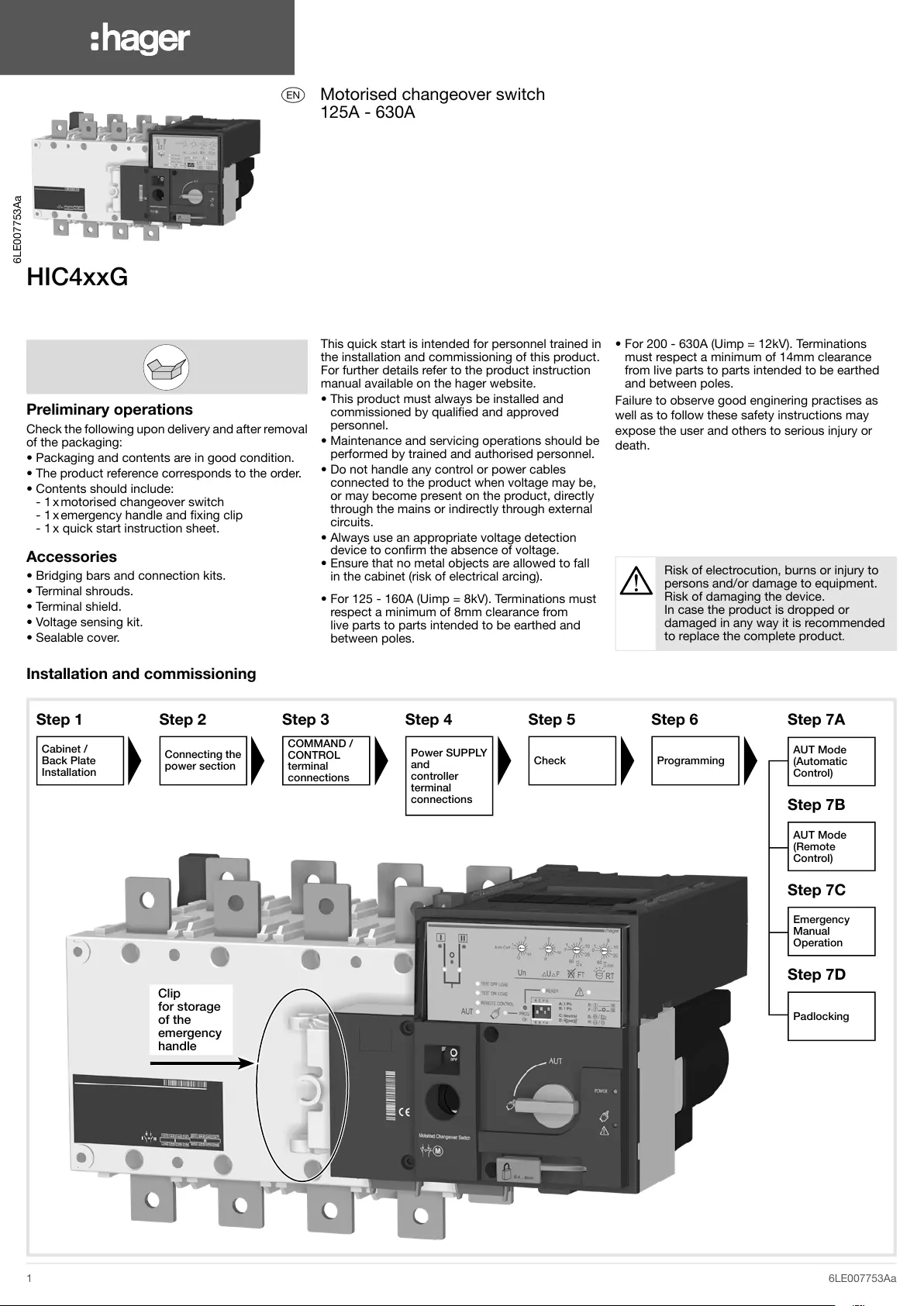

This quick start is intended for personnel trained in
the installation and commissioning of this product.
For further details refer to the product instruction
manual available on the hager website.
• This product must always be installed and
commissioned by qualied and approved
personnel.
• Maintenance and servicing operations should be
performed by trained and authorised personnel.
• Do not handle any control or power cables
connected to the product when voltage may be,
or may become present on the product, directly
through the mains or indirectly through external
circuits.
• Always use an appropriate voltage detection
device to conrm the absence of voltage.
• Ensure that no metal objects are allowed to fall
in the cabinet (risk of electrical arcing).
• For 125 - 160A (Uimp = 8kV). Terminations must
respect a minimum of 8mm clearance from
live parts to parts intended to be earthed and
between poles.
• For 200 - 630A (Uimp = 12kV). Terminations
must respect a minimum of 14mm clearance
from live parts to parts intended to be earthed
and between poles.
Failure to observe good enginering practises as
well as to follow these safety instructions may
expose the user and others to serious injury or
death.
Risk of electrocution, burns or injury to
persons and/or damage to equipment.
Risk of damaging the device.
In case the product is dropped or
damaged in any way it is recommended
to replace the complete product
.
6LE007753Aa
6LE007753Aa16LE007753Aa26LE007753Aa3
Slot for optional modules
RecommendedOK
OKNO
XT
Fix.M
F
C
Fix.187,5
21
229,5
a
b
c
16,2
16,2
8,6
8,6
U
CA
12,5
7,5
W
a
b
Dimensions in mm
1. Installation
4.
3.
Door cut-out for front panel
125A160A200A250A400A630A
4P
F317378437
M150210270
T365065
C244321
U203545
W91113
CA101520
X223337,5
Ensure that the product is installed
on a at rigid surface.
1
M8 Type ZM8
2
3
630A125A to 400A
Mounting
Removing covers
Orientation
Max.
0.51 in.
13 mm.
