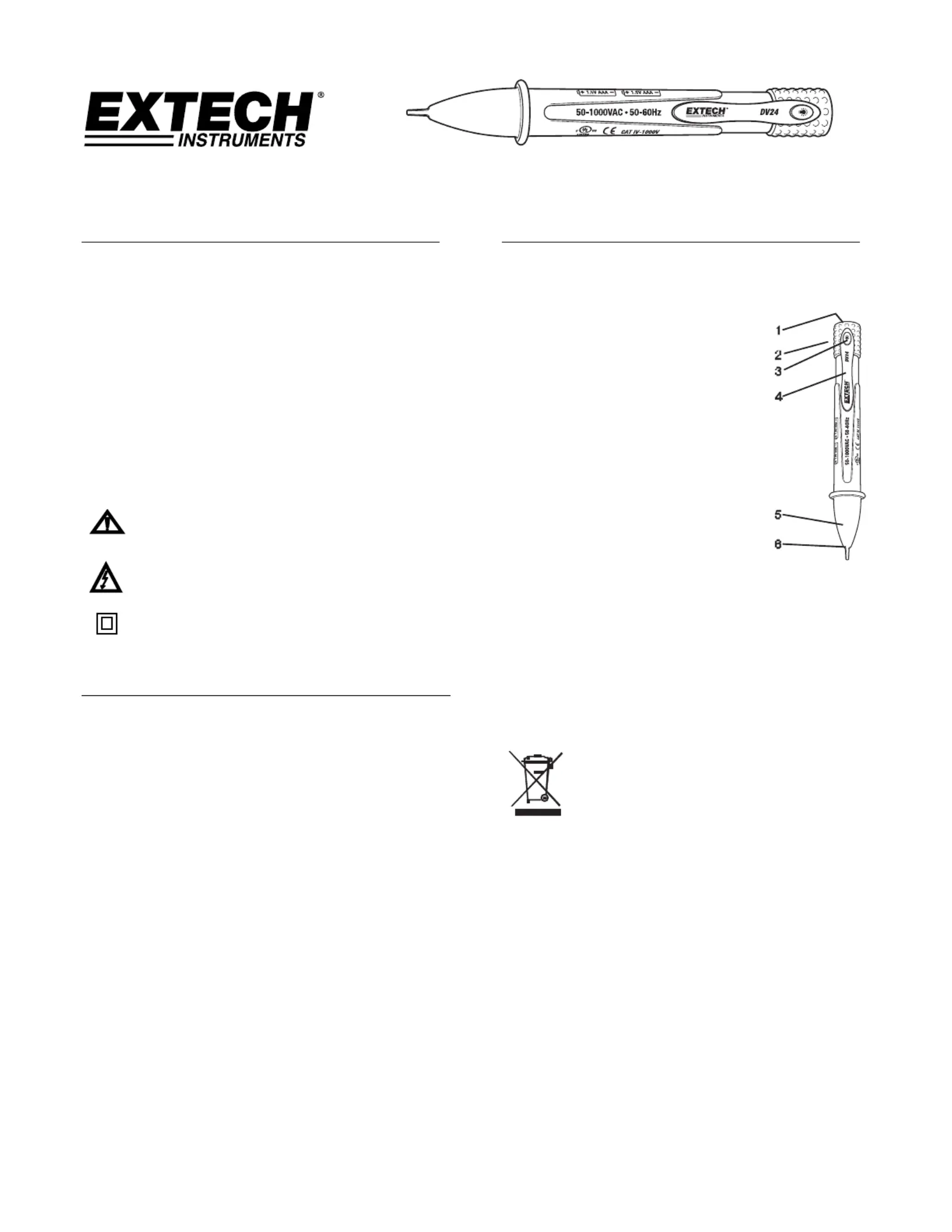

DV24-EU-EN v3.3 08/13

User’s Guide

DV24 Non-Contact Voltage Detector and Flashlight

Safety

WARNING: Risk of Electrocution. Before use, always test the

Voltage Detector on a known live circuit to verify

proper operation

WARNING: Risk of Electrocution. Keep hands and fingers on

the body of the probe and away from the probe tip

CAUTION: Read, understand and follow Safety Rules and

Operating Instructions in this manual before

using this product.

Do not attempt to repair this unit. There are no user serviceable

parts.

Do not expose the unit to extreme temperatures or high

humidity

Do not use the unit if it is wet or damaged

Do not apply more than the rated voltage between the probe tip

and ground.

Do not operate with the case open

This symbol, adjacent to another symbol or terminal,

indicates the user the user must refer to the manual for

further information.

This symbol, adjacent to a terminal, indicates that, under

normal use, hazardous voltages may be present

Double insulation

Specifications

Voltage Sensitivity 50V to 1000V AC

Bandwidth50/60Hz

Detection distance <0.2”

Operating Temperature 5 to 40

o

C (41 to 104

o

F)

Storage Temperature-20 to 60

o

C (-4 to 140

o

F)

AltitudeOperating below 2000 meters

Relative Humidity80% up to 31

o

C, decreasing to 50%

at 50

o

C

Battery2 AAA batteries

Dimensions/Weight159x25mm (6.25x1”) / 42g (1.5oz)

Safety For indoor use and in accordance

with Overvoltage Category IV-1000V,

Pollution Degree 2.

UL Listed The UL mark does not indicate that

this product has been evaluated for

the accuracy of its readings.

Operating Instructions

Note: For new meters, remove the battery end cap and then

remove the battery insulating strip.

AC VOLTAGE DETECTION

1. Touch the probe tip (6) to the hot

conductor or insert into the hot side of

the electrical outlet.

2. If AC voltage is present, the detector

cone will illuminate (5).

NOTE: The conductors in electrical cord

sets are often twisted. For best

results, rub the probe tip along a

length of the

cord to assure placing the tip in

close proximity to the live conductor.

NOTE: The detector is designed with high

sensitivity. Static electricity or other

sources of energy may randomly

trip the sensor. This is normal

operation.

FLASHLIGHT

Press and hold the flashlight ON/OFF button (3) to turn on

the flashlight (1).

BATTERY INSTALLATION

1. Remove the end cap (2) by gently lifting the pocket clip (4)

to release the catch.

2. Insert two AAA batteries (observe polarity).

3. Replace the end cap

NOTE: If your meter does not work properly, check the

battery to make sure that it still good and that it is

properly inserted.

You, as the end user, are legally bound (EU Battery

ordinance) to return all used batteries, disposal in

the household garbage is prohibited! You can

hand over your used batteries / accumulators at

collection points in your community or wherever

batteries / accumulators are sold!

Disposal: Follow the valid legal stipulations in

respect of the disposal of the device at the end of its

lifecycle

Copyright©2013FLIRSystems,Inc.

Allrightsrightreservedincludingtheofreproductioninwholeorininpartany

form

ISO‐9001Certified

www.extech.com
